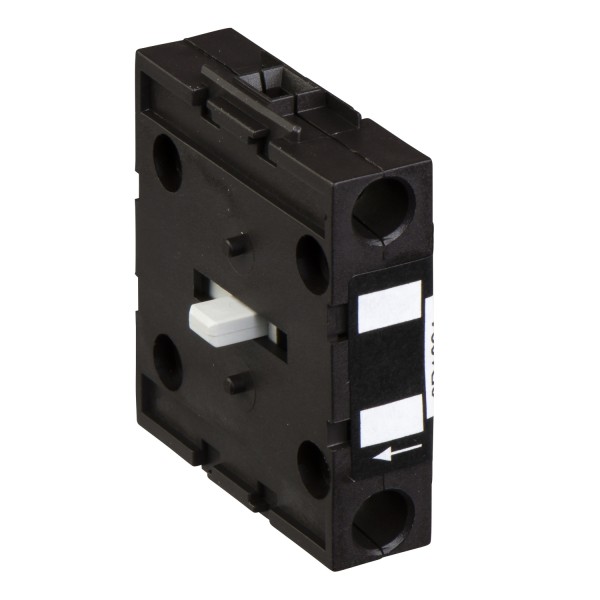

TeSys Mini-VARIO - additional pole - 12 A - for VN-12

Ülevaaded: 0

Tootekood: VZN12

Quick Overview

Saadavus: Tellimisel

12,50 € (ilma KM-ta)

Details

Main
range
TeSys
device short name
VZN
product or component type
Additional pole
performance level
Standard
poles description
1P
contacts type and composition
1 NO
product compatibility
VN12
network type
AC
DC
network frequency
50/60 Hz
mounting location
Right
Left
Complementary
range compatibility
TeSys VARIO VCFN switch disconnector
[Ue] rated operational voltage
690 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage
6 kV
[Ith] conventional free air thermal current
12 A
[Ithe] conventional enclosed thermal current
10 A
mechanical durability
50000 cycles
electrical durability
30000 cycles DC-1...5
50000 cycles AC-21
suitability for isolation
Yes
connections - terminals
Power circuit screw clamp terminals 4 mm² flexible - with cable end
Power circuit screw clamp terminals 4 mm² solid
tightening torque
Power circuit 0,7 N.m screw clamp terminals
height
45,5 mm
width
12 mm
depth
39 mm
net weight
0,02 kg
Environment
standards
IEC 60947-3
product certifications
GL
UL
CSA
protective treatment
TC
IP degree of protection
IP20 IEC 60529
mechanical robustness
Vibrations 10...150 Hz 5 gn) IEC 60068-2-6
Shocks 11 ms 15 gn) IEC 60068-2-27
ambient air temperature for operation
-20…50 °C
fire resistance
960 °C IEC 60595-2-1
Offer Sustainability
Jätkusuutliku pakkumise olek
Green Premium toode
REACh-määrus
Ilma SVHC REACh-ta
Jah
ELi RoHS direktiiv
Mürgiste raskemetallideta
Jah
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Hiina RoHS deklaratsioon
Ennetav Hiina RoHS deklaratsioon (ei kuulu Hiina RoHS-i õigussfääri)
Keskkonnaalane avaldus
WEEE
Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
Contractual warranty
Garantii
18 months
