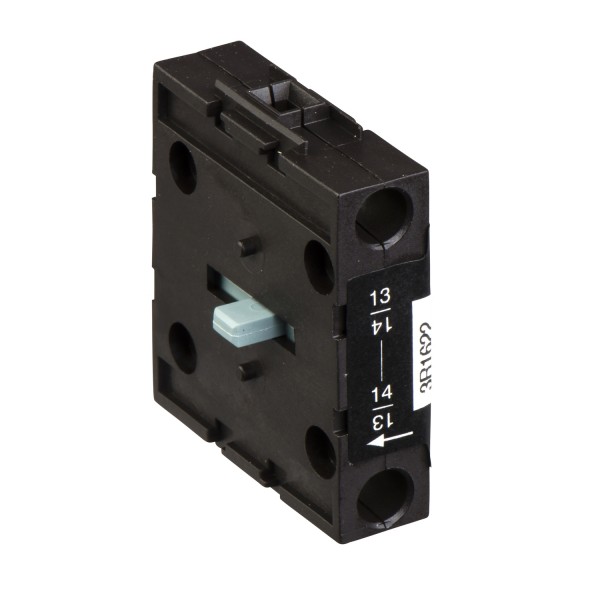

TeSys Mini-VARIO - auxiliary contact block - 1 NO

Ülevaaded: 0

Tootekood: VZN05

Quick Overview

Saadavus: Tellimisel

9,28 € (ilma KM-ta)

Details

Main
range
TeSys
device short name
VZN
product or component type
Auxiliary contact block
performance level
Standard
contacts type and composition
1 NO
contact operation
Late-make
product compatibility
VN20
VN12
network type
AC
DC
network frequency
50/60 Hz
mounting location
Right
Left
Complementary
range compatibility
TeSys VARIO VCFN switch disconnector
[Ue] rated operational voltage
690 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage
6 kV
[Ith] conventional free air thermal current
6 A
[Ithe] conventional enclosed thermal current
4 A
mechanical durability
50000 cycles
electrical durability
30000 cycles DC-11
50000 cycles AC-21
connections - terminals
screw clamp terminals 2 0,75…1,5 mm² flexible - with cable end
screw clamp terminals 2 1…2,5 mm² solid
tightening torque
0,7 N.m screw clamp terminals
height
45,5 mm
width
12 mm
depth
39 mm
net weight
0,02 kg
Environment
standards
IEC 60947-5
product certifications
GL
CSA
UL
protective treatment
TC
IP degree of protection
IP20 IEC 60529
ambient air temperature for operation
-20…50 °C
fire resistance
960 °C IEC 60695-2-1
Offer Sustainability
Jätkusuutliku pakkumise olek
Green Premium toode
REACh-määrus
Ilma SVHC REACh-ta
Jah
ELi RoHS direktiiv
Mürgiste raskemetallideta
Jah
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Hiina RoHS deklaratsioon
Ennetav Hiina RoHS deklaratsioon (ei kuulu Hiina RoHS-i õigussfääri)
Keskkonnaalane avaldus
WEEE
Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
Contractual warranty
Garantii
18 months
