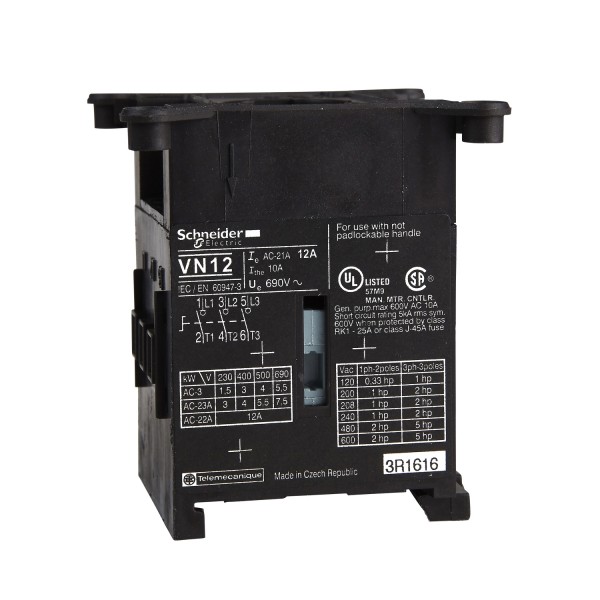

TeSys Mini-VARIO - Switch body for switch-disconnector - 3 poles

Details

Main
range	TeSys
product name	TeSys Mini-VARIO
product or component type	Switch body
performance level	Standard
poles description	3P
contacts type and composition	3 NO
network type	AC DC
network frequency	50/60 Hz

Complementary
mounting support	Symmetrical rail
[Ue] rated operational voltage	690 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage	6 kV
[Ith] conventional free air thermal current	20 A
[Ithe] conventional enclosed thermal current	16 A
[Ie] rated operational current	11 A AC-23)400 V
rated operational power in W	11 kW 690 V AC-23A) 3 kW 230...240 V AC-3) 4 kW 400...415 V AC-3) 5,5 kW 500 V AC-3) 5,5 kW 690 V AC-3) 7,5 kW 500 V AC-23A) 4 kW 230...240 V AC-23A) 5,5 kW 400...415 V AC-23A)
intermittent duty class	30
Making capacity ( I Rms)	200 A 400 V AC-21A 200 A 400 V AC-22A 200 A 400 V AC-23A
[Icm] rated short-circuit making capacity	0,5 kA 400 V at Ipeak
[Icw] rated short-time withstand Rms current	140 A 400 V 1 s
rated conditional short-circuit current	6 kA 400 V 20 A aM 6 kA 400 V 20 A gG
breaking capacity	200 A 400 V AC-21A) 200 A 400 V AC-22A) 200 A 400 V AC-23A)
mechanical durability	50000 cycles
electrical durability	30000 cycles DC-1...5 50000 cycles AC-21
suitability for isolation	Yes
connections - terminals	Power circuit screw clamp terminals 4 mm² solid Power circuit screw clamp terminals 4 mm² flexible - with cable end
tightening torque	Power circuit 0,7 N.m screw clamp terminals
height	46,5 mm
width	56 mm
depth	62 mm
net weight	0,11 kg

Environment
standards	IEC 60947-3
product certifications	GL UL CSA
protective treatment	TC
IP degree of protection	IP20 IEC 60529
mechanical robustness	Shocks 11 ms 15 gn) IEC 60068-2-27 Vibrations 10...150 Hz 1 gn) IEC 60068-2-6
ambient air temperature for operation	-20…50 °C
fire resistance	960 °C IEC 60695-2-1

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
Ilma SVHC REACh-ta	Jah
ELi RoHS direktiiv	Vastavus ELi RoHS deklaratsioon
Mürgiste raskemetallideta	Jah
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon Ennetav Hiina RoHS deklaratsioon (ei kuulu Hiina RoHS-i õigussfääri)
Keskkonnaalane avaldus	Toote keskkonnaprofiil
WEEE	Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.

Contractual warranty
Garantii	18 months
