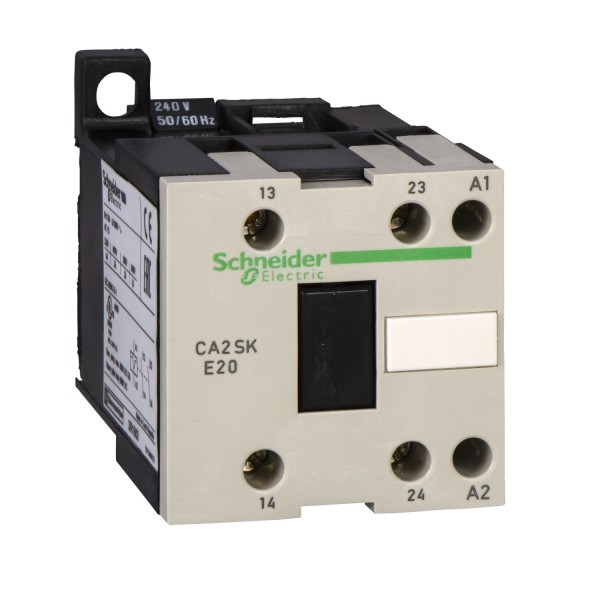

TeSys SK control relay - 2 NO - <= 690 V - 380 V AC coil

Product was successfully added to your shopping cart.

TeSys SK control relay - 2 NO - <= 690 V - 380 V AC coil

Tootekood: CA2SKE20Q7

Quick Overview

Saadavus: Tellimisel

40,52 € (ilma KM-ta)

Qty:

Details

Main
range	TeSys
product name	TeSys CASK
product or component type	Control relay
device short name	CA2SKE
contactor application	Control circuit
utilisation category	DC-13 AC-15
pole contact composition	2 NO
[Ue] rated operational voltage	<= 690 V <= 400 Hz
control circuit type	AC at 50/60 Hz
[Uc] control circuit voltage	380 V AC 50/60 Hz

Complementary
[Ith] conventional free air thermal current	10 A (at 55 °C)
associated fuse rating	10 A gL conforming to VDE 0660 10 A gL conforming to IEC 60947
[Ui] rated insulation voltage	690 V conforming to IEC 60947 690 V conforming to VDE 0110 group C 690 V conforming to BS 5424 690 V conforming to UL 508 690 V conforming to CSA C22.2 No 14
mounting support	Plate Rail
connections - terminals	Screw clamp terminals 1 cable(s) 1.5…6 mm²solid Screw clamp terminals 2 cable(s) 1.5…4 mm²solid Screw clamp terminals 1 cable(s) 0.5…6 mm²flexible without cable end Screw clamp terminals 1 cable(s) 0.35…6 mm²flexible with cable end Screw clamp terminals 2 cable(s) 0.35…1.5 mm²flexible with cable end Screw clamp terminals 2 cable(s) 0.35…2.5 mm²flexible without cable end
tightening torque	0.8 N.m - on screw clamp terminals pozidriv No 1 screw head
control circuit voltage limits	Drop-out: 0.2...0.75 Uc (at <50 °C) Operational: 0.85...1.1 Uc (at <50 °C)
operating time	6...8 ms coil de-energisation and NO opening 7...14 ms coil energisation and NO closing
mechanical durability	10 Mcycles
maximum operating rate	1200 cyc/h
inrush power in VA	23 VA (at 20 °C)
hold-in power consumption in VA	4.9 VA (at 20 °C)
heat dissipation	1.5 W
height	56 mm
width	27 mm
depth	55.5 mm
net weight	0.132 kg

Environment
standards	IEC 60947 BS 5424 NF C 63-110 VDE 0660
product certifications	CULus
IP degree of protection	IP2x
protective treatment	TC conforming to IEC 60068
ambient air temperature for operation	-20…50 °C
ambient air temperature for storage	-50…70 °C
operating altitude	2000 m without

Offer Sustainability
EU RoHS Directive	Compliant EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration Product out of China RoHS scope. Substance declaration for your information
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Contractual warranty
Warranty	18 months
