  • TeSys VARIO - additional pole - 12 A - for V02

Product was successfully added to your shopping cart.

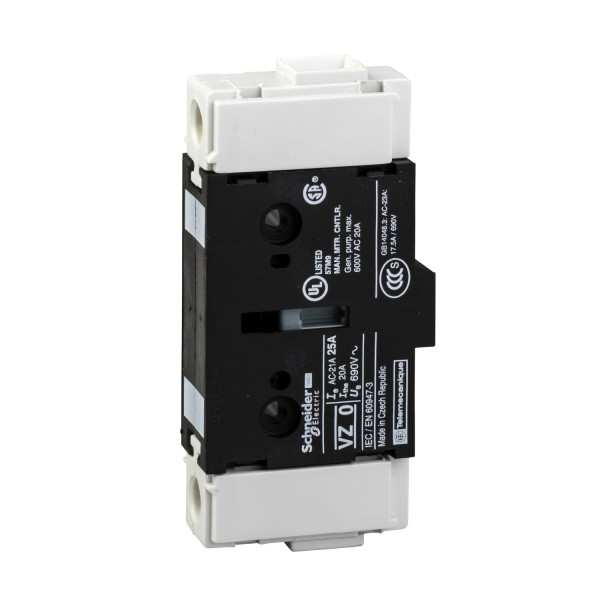

TeSys VARIO - additional pole - 12 A - for V02

Ülevaaded: 0

Tootekood: VZ02

Quick Overview

Saadavus: Tellimisel

10,12 € (ilma KM-ta)

Details

Main
range
TeSys
device short name
VZ
product or component type
Additional pole
performance level
High performance
poles description
1P
contacts type and composition
1 NO
product compatibility
V02
range compatibility
TeSys VARIO switch disconnector
network type
DC
AC
network frequency
50/60 Hz
suitability for isolation
Yes
Complementary
mounting location
Left
[Ue] rated operational voltage
690 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage
8 kV
[Ith] conventional free air thermal current
12 A
[Ithe] conventional enclosed thermal current
10 A
mechanical durability
100000 cycles
electrical durability
100000 cycles AC-21
30000 cycles DC-1...5
connections - terminals
Power circuit screw clamp terminals 6 mm² flexible - with cable end
Power circuit screw clamp terminals 10 mm² solid
tightening torque
Power circuit 2,1 N.m screw clamp terminals
height
74 mm
width
16 mm
depth
35 mm
net weight
0,05 kg
Environment
standards
IEC 60947-3
product certifications
CSA
UL
GL
protective treatment
TC
IP degree of protection
IP20 IEC 60529
mechanical robustness
Vibrations 10...150 Hz 1 gn) IEC 60068-2-6
Shocks 11 ms 30 Gn) IEC 60068-2-27
ambient air temperature for operation
-20…50 °C
fire resistance
960 °C IEC 60695-2-1
Offer Sustainability
Jätkusuutliku pakkumise olek
Green Premium toode
REACh-määrus
Ilma SVHC REACh-ta
Jah
ELi RoHS direktiiv
Mürgiste raskemetallideta
Jah
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Hiina RoHS deklaratsioon
Ennetav Hiina RoHS deklaratsioon (ei kuulu Hiina RoHS-i õigussfääri)
Keskkonnaalane avaldus
WEEE
Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
Contractual warranty
Garantii
18 months
