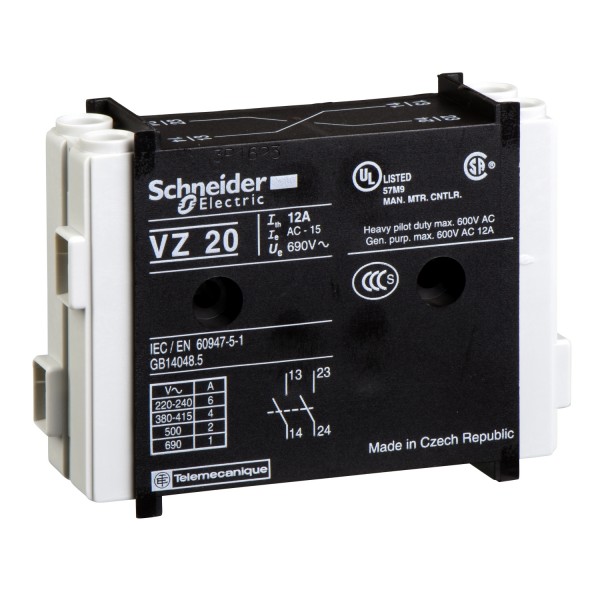

TeSys VARIO - auxiliary contact block - 1 NO + 1 NO

Ülevaaded: 0

Tootekood: VZ20

Quick Overview

Saadavus: Tellimisel

8,57 € (ilma KM-ta)

Details

Main
range
TeSys
device short name
VZ
product or component type
Auxiliary contact block
performance level
High performance
contacts type and composition
1 NO + 1 NO
product compatibility
V3
V01
V2
V0
V6
V4
V1
V5
V02
network type
DC
AC
network frequency
50/60 Hz
mounting location
Right
Complementary
[Ue] rated operational voltage
690 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage
8 kV
[Ith] conventional free air thermal current
12 A
[Ithe] conventional enclosed thermal current
10 A
mechanical durability
100000 cycles
electrical durability
30000 cycles DC-11
100000 cycles AC-15
connections - terminals
screw clamp terminals 2 0,75…1,5 mm² flexible - with cable end
screw clamp terminals 2 1…2,5 mm² solid
tightening torque
0,7 N.m screw clamp terminals
height
65 mm
width
20 mm
depth
48,5 mm
net weight
0,05 kg
Environment
standards
IEC 60947-5
product certifications
GL
UL
CSA
protective treatment
TC
IP degree of protection
IP20 IEC 60529
ambient air temperature for operation
-20…50 °C
fire resistance
960 °C IEC 60695-2-1
Offer Sustainability
Jätkusuutliku pakkumise olek
Green Premium toode
REACh-määrus
Ilma SVHC REACh-ta
Jah
ELi RoHS direktiiv
Mürgiste raskemetallideta
Jah
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Hiina RoHS deklaratsioon
Ennetav Hiina RoHS deklaratsioon (ei kuulu Hiina RoHS-i õigussfääri)
Keskkonnaalane avaldus
WEEE
Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
Contractual warranty
Garantii
18 months
