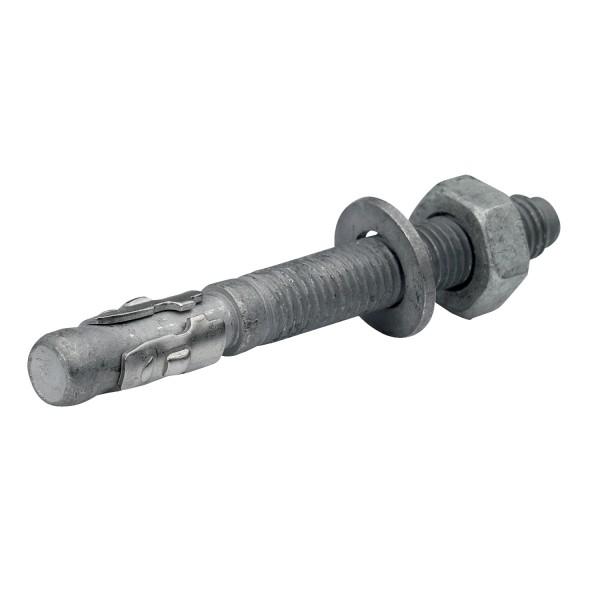

Thorsman - TEX-C3 M10x60 - through bolt - set of 50

Ülevaaded: 0

Tootekood: IMT38017

Quick Overview

Saadavus: Ei saa enam tellida

0,55 € (ilma KM-ta)

Details

Main
range of product
Thorsman
product or component type
Through bolt
device short name
TEX
provided equipment
Nut
Washer
quantity per set
Set of 50
Complementary
mounting support
Natural rock
Concrete
type of installation
Indoor/outdoor
thread type
M10
screw length
60 mm
drilling diameter
10 mm
minimum drilling depth
57 mm
thickness
Fixture: 0…7 mm
embedding depth
40 mm
tightening torque
35 N.m
material
Steel hot-dip zinc
atmospheric-corrosivity category
C3
practical load capacity
Pull-out load: 3.9 kN for concrete C20/C25
Shear: 7.4 kN for concrete C20/C25
serviceability limit state
Pull-out load: 990 kg for concrete C20/C25
ultimate limit state
Pull-out load: (safety cl 1)520 kg for concrete C20/C25
Shear: (safety cl 1)980 kg for concrete C20/C25
Pull-out load: (safety cl 2)470 kg for concrete C20/C25
Shear: (safety cl 2)890 kg for concrete C20/C25
accidental action
Pull-out load: 1030 kg for concrete C20/C25
Shear: 1950 kg for concrete C20/C25
Environment
ambient air temperature for operation
-20…60 °C
Offer Sustainability
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Environmental Disclosure
Circularity Profile
No need of specific recycling operations
Contractual warranty
Warranty
18 months
