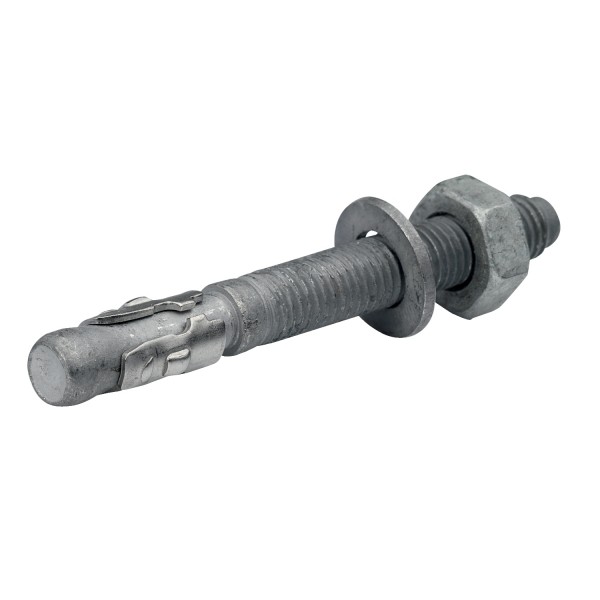

Thorsman - TEX-C3 M8x50 - through bolt - set of 100

Ülevaaded: 0

Tootekood: IMT38015

Quick Overview

Saadavus: Ei saa enam tellida

0,36 € (ilma KM-ta)

Details

Main
range of product
Thorsman
product or component type
Through bolt
device short name
TEX
provided equipment
Nut
Washer
quantity per set
Set of 100
Complementary
mounting support
Natural rock
Concrete
type of installation
Indoor/outdoor
thread type
M8
screw length
50 mm
drilling diameter
8 mm
minimum drilling depth
48 mm
thickness
Fixture: 0…5 mm
embedding depth
35 mm
tightening torque
23 N.m
material
Steel hot-dip zinc
atmospheric-corrosivity category
C3
practical load capacity
Pull-out load: 3.4 kN for concrete C20/C25
Shear: 4.8 kN for concrete C20/C25
serviceability limit state
Pull-out load: 870 kg for concrete C20/C25
ultimate limit state
Pull-out load: (safety cl 1)450 kg for concrete C20/C25
Shear: (safety cl 1)640 kg for concrete C20/C25
Pull-out load: (safety cl 2)410 kg for concrete C20/C25
Shear: (safety cl 2)580 kg for concrete C20/C25
accidental action
Pull-out load: 900 kg for concrete C20/C25
Shear: 1270 kg for concrete C20/C25
Environment
ambient air temperature for operation
-20…60 °C
Offer Sustainability
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Environmental Disclosure
Circularity Profile
No need of specific recycling operations
Contractual warranty
Warranty
18 months
