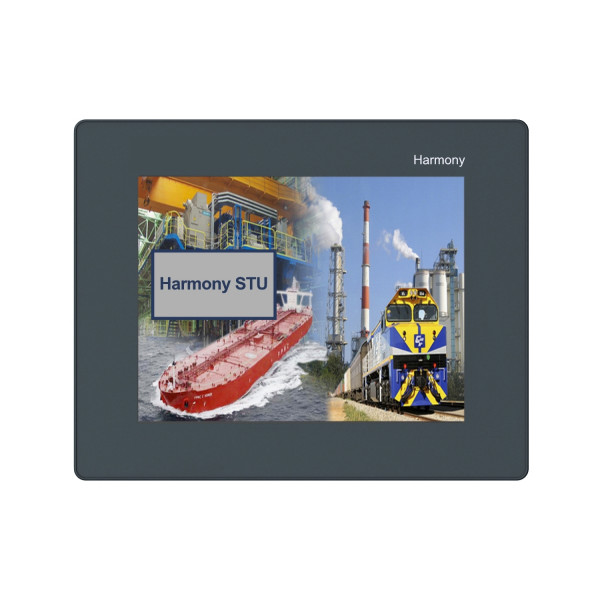

touch panel screen 5''7 Color without Schneider logo

Details

Complementary
display size	5.7 inch
display type	QVGA TFT colour touchscreen
display colour	65536 colours
display resolution	320 x 240 pixels QVGA
touch panel	Analogue
backlight lifespan	50000 hours
brightness	16 levels
character font	ASCII Japanese (ANK, Kanji) Chinese (simplified Chinese) Taiwanese (traditional Chinese) Korean
[Us] rated supply voltage	24 V DC
supply	External source
supply voltage limits	20.4…28.8 V
inrush current	30 A
power consumption in W	6.8 W
number of pages	Limited by internal memory capacity
processor frequency	333 MHz
memory description	Application memory 16 MB Back up of data 64 kB
integrated connection type	1 USB 2.0 type mini B 1 USB 2.0 type A COM1 serial link - female RJ45 - RS232C/RS485 (rate: <= 115.2 kbits/s) power supply - removable screw terminal block
realtime clock	Access to the PLC real-time clock
downloadable protocols	Third party protocols Uni-TE Modbus Modbus TCP/IP
fixing mode	Ø 22 mm hole
enclosure material	PC/PBT and PAA
marking	CE Without Schneider logo
height	129.15 mm
width	163 mm
depth	56.5 mm

Environment
immunity to microbreaks	7 ms
standards	IEC 61000-6-2 UL 508 UL 1604 EN 61131-2 FCC Class A
product certifications	CULus C-Tick UL class 1 Div2 T4A ou T5 Marine
ambient air temperature for operation	0…50 °C
ambient air temperature for storage	-20…60 °C
relative humidity	0…85 % without condensation
operating altitude	<= 2000 m
IP degree of protection	IP20 (rear panel) conforming to IEC 60529 IP65 (front panel) conforming to IEC 60529
NEMA degree of protection	NEMA 4X front panel (indoor use)
shock resistance	15 gn for 11 ms conforming to IEC 60068-2-27
vibration resistance	+/- 3.5 mm (f = 5…9 Hz) conforming to IEC 60068-2-6 1 gn (f = 9…150 Hz) conforming to IEC 60068-2-6
resistance to electromagnetic fields	10 V/m conforming to IEC 61000-4-3

Offer Sustainability
REACh Regulation	REACh Declaration
EU RoHS Directive	Compliant EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
