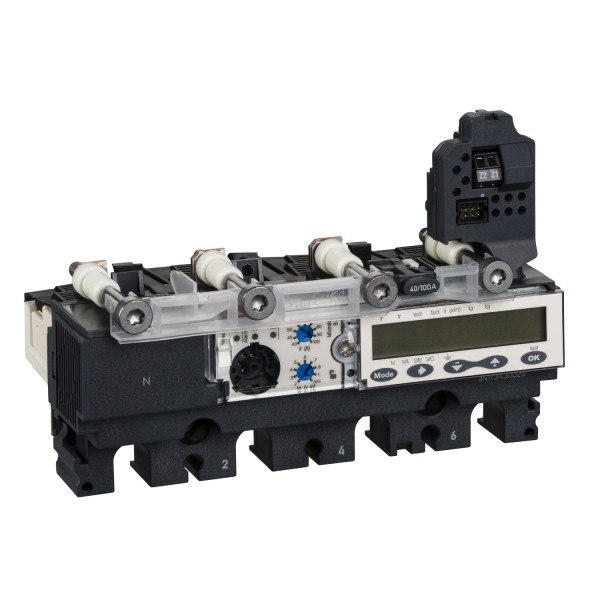

trip unit Micrologic 6.2 E for Compact NSX 100/160/250 circuit breakers, electronic, rating 40A, 4 poles 4d

Ülevaaded: 0

Tootekood: LV429141

Quick Overview

Saadavus: Tellimisel

786,46 € (ilma KM-ta)

Details

Main
range of product
NSX100...250
product or component type
Control unit
range compatibility
Compact NSX100
Compact NSX160
Compact NSX250
device application
Distribution
poles description
4P
protected poles description
3t + 1.6 N
4t
3t
3t + N/2
neutral position
Left
network type
AC
network frequency
50/60 Hz
trip unit name
Micrologic 6.2 E
trip unit technology
Electronic
trip unit protection functions
LSIG
protection type
Overload protection (long time)
Short time short-circuit protection
Instantaneous short-circuit protection
Ground fault protection
trip unit rating
40 A 40 °C
Complementary
mounting mode
Fixed
[Ue] rated operational voltage
690 V AC 50/60 Hz
neutral protection setting
0.5 x Ir 3t + N/2)
1 x Ir 4t)
1.6 x Ir 3t + OSN)
No protection 3t)
long time pick-up adjustment type Ir
Adjustable 9 settings
[Ir] long time pick-up adjustment range
18...40 A
long time delay adjustment type
Adjustable
[tr] long-time delay adjustment range
15…400 s 1.5 x Ir
0,35…11 s 7.2 x Ir
0,5…16 s 6 x Ir
thermal memory
20 minutes before and after tripping
short-time pick-up adjustment type Isd
Adjustable 9 settings
[Isd] short-time pick-up adjustment range
1.5...10 x Ir
short-time delay adjustment type
Adjustable
[tsd] short-time delay adjustment range
0…0,4 s I²t=off
0,1…0,4 s I²t=on
instantaneous pick-up adjustment type Ii
Adjustable
[Ii] instantaneous pick-up adjustment range
1.5...12 x In Compact NSX250
1.5...15 x In Compact NSX100
1.5...15 x In Compact NSX160
ground-fault pick-up adjustment type
Adjustable
[Ig] ground-fault pick-up adjustment range
0.2...1 x In In = 40 A
0.4...1 x In In > 40 A
Ig enable on/off
ground-fault time delay adjustment type -tg
Adjustable
[tg] ground-fault time delay adjustment range
0…0,4 s I²t=off
0,1…0,4 s I²t=on
zone selective interlocking ZSI
With
communication of data
Energy metering
Demand current and power
Time-stamped histories and event tables
Protection and alarm settings
Maintenance indicators
Power quality
Instantaneous and demand values
Maximeters/minimeters
display type
LCD display
type of measurement
Energy meter
electrical data recording
Maintenance indicators
Environment
standards
EN/IEC 60947-2
UL 508
product certifications
EAC
CCC
Marine
ambient air temperature for operation
-25…70 °C
ambient air temperature for storage
-40…85 °C
Offer Sustainability
Jätkusuutliku pakkumise olek
Green Premium toode
ELi RoHS direktiiv
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Hiina RoHS deklaratsioon
Toode ei kuulu Hiina RoHS sfääri. Ainedeklaratsioon teavitamiseks.
Keskkonnaalane avaldus
Ringlusprofiil
Contractual warranty
Garantii
18 months
