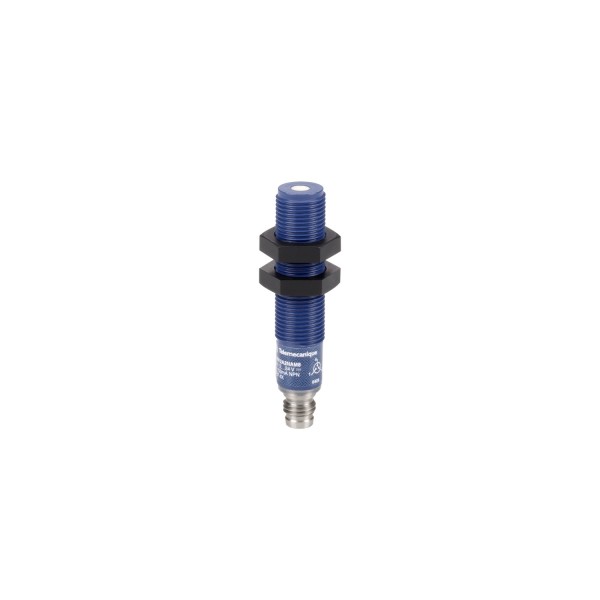

ultrasonic sensor cylindrical M12 - receiver - Sn 0.2 m - 2NC - M8 connector

Ülevaaded: 0

Tootekood: XXR12A8KBM8

Quick Overview

Saadavus: Ei saa enam tellida

538,03 € (ilma KM-ta)

Details

Main
range of product
OsiSense XX
sensor type
Ultrasonic sensor receiver
series name
General purpose
sensor name
XXR
sensor design
Cylindrical M12
detection system
Thru beam (need a transmitter XXT12A8M12)
[Sn] nominal sensing distance
0.2 m fixed
material
Plastic
type of output signal
Discrete
discrete output function
2 NC
wiring technique
4-wire
discrete output type
PNP and NPN
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
electrical connection
Male connector M8 4 pins
[Sd] sensing range
0…0.2 m
IP degree of protection
IP67 conforming to IEC 60529
Complementary
enclosure material
ULTEM
front material
Epoxy
thread type
M12 x 1
supply voltage limits
10…28 V DC
[Sa] assured operating distance
0…0.2 m
current consumption
50 mA
maximum switching current
100 mA with overload and short-circuit protection
maximum voltage drop
1 V
switching frequency
<= 125 Hz
maximum delay first up
100 ms
maximum delay response
20 ms
maximum delay recovery
4 ms
marking
CE
threaded length
38 mm
height
12 mm
width
12 mm
depth
50 mm
net weight
0.011 kg
Environment
standards
IEC 60947-5-2
product certifications
UL
ambient air temperature for operation
-20…65 °C
ambient air temperature for storage
-40…80 °C
vibration resistance
+/-1 mm conforming to IEC 60068-2-6 (f = 10…55 Hz)
shock resistance
30 gn in all 3 axes for 11 ms conforming to IEC 60068-2-27
resistance to electrostatic discharge
8 kV level 4 conforming to IEC 61000-4-2
resistance to electromagnetic fields
10 V/m level 3 conforming to IEC 61000-4-3
resistance to fast transients
1 kV level 3 conforming to IEC 61000-4-4
Offer Sustainability
Sustainable offer status
Green Premium product
REACh Regulation
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Mercury free
Yes
RoHS exemption information
Environmental Disclosure
Circularity Profile
Contractual warranty
Warranty
18 months
