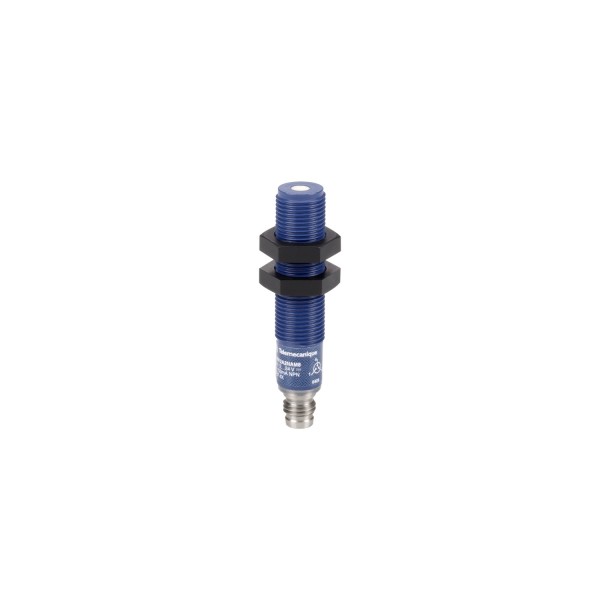

ultrasonic sensor cylindrical M12 - Sn 0.1 m - NO

Details

Main
range of product	OsiSense XX
sensor type	Ultrasonic sensor
series name	General purpose
sensor name	XX5
sensor design	Cylindrical M12
detection system	Diffuse
[Sn] nominal sensing distance	0,1 m fixed
material	Plastic
type of output signal	Discrete
discrete output function	1 NO
wiring technique	3-wire
discrete output type	NPN
[Us] rated supply voltage	12...24 V DC reverse polarity protection
electrical connection	Male connector M8 3 pins
[Sd] sensing range	0,0064…0,102 m
beam angle	10 °
IP degree of protection	IP67 IEC 60529

Complementary
enclosure material	ULTEM
front material	Epoxy
thread type	M12 x 1
supply voltage limits	10…28 V DC
[Sa] assured operating distance	0,0064…0,102 m
maximum differential travel	0,7 mm
blind zone	0…6,4 mm
transmission frequency	500 kHz
repeat accuracy	0,7 %
deviation angle from 90° of object to be detected	-10…10 °
minimum size of detected object	Cylinder diameter 2.5 mm Flat bar 1 mm wide
status LED	Supply on 1 LED green) Output state 1 LED yellow)
current consumption	25 mA
maximum switching current	100 mA overload and short-circuit protection
maximum voltage drop	1 V
switching frequency	<= 125 Hz
maximum delay first up	20 ms
maximum delay response	3 ms
maximum delay recovery	3 ms
marking	CE
threaded length	38 mm
height	12 mm
width	12 mm
depth	50 mm
net weight	0,011 kg

Environment
standards	IEC 60947-5-2
product certifications	UL
ambient air temperature for operation	-20…65 °C
ambient air temperature for storage	-40…80 °C
vibration resistance	+/-1 mm 10…55 Hz)IEC 60068-2-6
shock resistance	30 gn in all 3 axes 11 ms IEC 60068-2-27
resistance to electrostatic discharge	8 kV level 4 IEC 61000-4-2
resistance to electromagnetic fields	10 V/m level 3 IEC 61000-4-3
resistance to fast transients	1 kV level 3 IEC 61000-4-4

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Keskkonnaalane avaldus	Toote keskkonnaprofiil
Ringlusprofiil	Kasutuselt kõrvaldamise teave

Contractual warranty
Garantii	18 months
