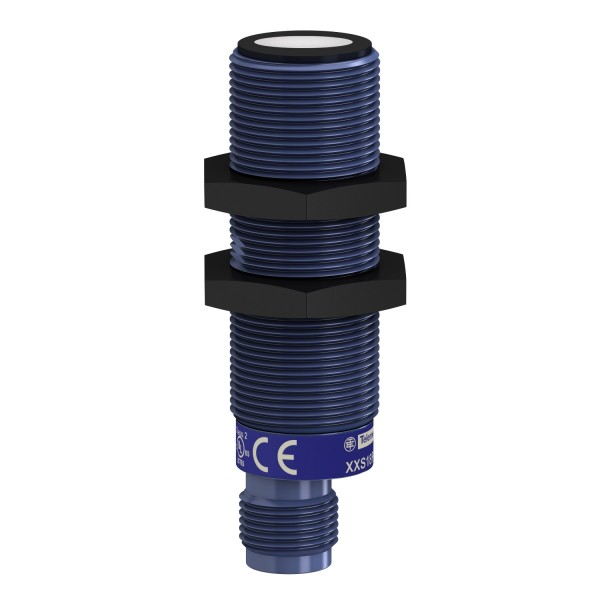

Ultrasonic sensor cylindrical M18 - Sn=1m - analog 4-20mA - SYNC - connector M12

Tootekood: XXS18P1AM12

Quick Overview

Saadavus: Tellimisel

293,12 € (ilma KM-ta)

Details

Main
range of product
OsiSense XX
sensor type
Ultrasonic sensor
series name
General purpose
sensor name
XXS
sensor design
Cylindrical M18
detection system
Diffuse
[Sn] nominal sensing distance
1 m adjustable with remote teach push-button
material
Plastic
type of output signal
Analogue
wiring technique
5-wire
analogue output function
4...20 mA
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
electrical connection
Male connector M12 5 pins
[Sd] sensing range
0.105…1 m
IP degree of protection
IP65 conforming to IEC 60529
IP67
Complementary
enclosure material
PBT
front material
Epoxy
Rubber
Resin
supply voltage limits
10…30 V DC
function available
Software configurable
With synchronisation mode
[Sa] assured operating distance
0.105…1 m (teach mode)
blind zone
105 mm
transmission frequency
200 kHz
repeat accuracy
0.1 %
deviation angle from 90° of object to be detected
-10…10 °
minimum size of detected object
Cylinder diameter 1 mm at 600 mm
status LED
Output state: 1 LED (yellow)
Echo state: 1 LED (green)
current consumption
30 mA
maximum switching capacity
250 Ohm with 12 V DC overload and short-circuit protection
850 Ohm with 24 V DC
setting-up
Teach mode
maximum delay first up
180 ms
maximum delay recovery
100 ms
marking
CE
threaded length
45 mm
height
18 mm
width
18 mm
depth
64 mm
net weight
0.033 kg
Environment
standards
EN/IEC 60947-5-2
CSA C22.2 No 14
UL 508
product certifications
RCM
CULus
E2
EAC
Ecolab
ambient air temperature for operation
-25…70 °C
ambient air temperature for storage
-40…80 °C
vibration resistance
+/-1 mm conforming to IEC 60068-2-6 (f = 10…55 Hz)
shock resistance
30 gn in all 3 axes for 11 ms conforming to IEC 60068-2-27
resistance to electrostatic discharge
8 kV level 4 conforming to IEC 61000-4-2
resistance to electromagnetic fields
10 V/m level 3 conforming to IEC 61000-4-3
resistance to fast transients
1 kV level 3 conforming to IEC 61000-4-4
Offer Sustainability
Sustainable offer status
Green Premium product
REACh Regulation
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Mercury free
Yes
RoHS exemption information
Environmental Disclosure
