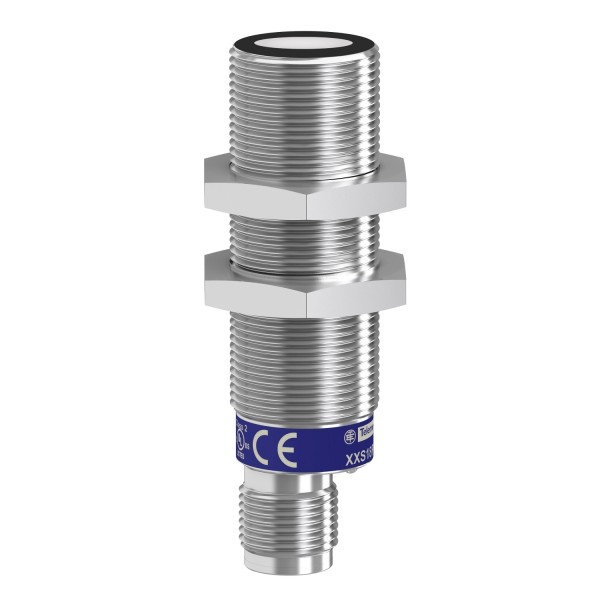

Ultrasonic sensor cylindrical M18 - Sn=1m - PNP - SYNC

Details

Main
range of product	OsiSense XX
sensor type	Ultrasonic sensor
series name	General purpose
sensor name	XXS
sensor design	Cylindrical M18
detection system	Diffuse
[Sn] nominal sensing distance	1 m adjustable with remote teach push-button
material	Metal
type of output signal	Discrete
discrete output function	1 NO or 1 NC programmable
wiring technique	5-wire
discrete output type	PNP
[Us] rated supply voltage	12...24 V DC with reverse polarity protection
electrical connection	Male connector M12 5 pins
[Sd] sensing range	0.105…1 m
IP degree of protection	IP65 conforming to IEC 60529 IP67

Complementary
enclosure material	Nickel plated brass
front material	Epoxy Rubber Resin
supply voltage limits	10…30 V DC
function available	With synchronisation mode Software configurable
[Sa] assured operating distance	0.105…1 m (teach mode)
maximum differential travel	4 mm
blind zone	105 mm
transmission frequency	200 kHz
repeat accuracy	0.1 %
deviation angle from 90° of object to be detected	-10…10 °
minimum size of detected object	Cylinder diameter 1 mm at 600 mm
status LED	Output state: 1 LED (yellow) Echo state: 1 LED (green)
current consumption	30 mA
maximum switching current	100 mA with overload and short-circuit protection
maximum voltage drop	2 V
switching frequency	11 Hz
setting-up	Teach mode Configurator software
maximum delay first up	120 ms
maximum delay response	45 ms
maximum delay recovery	45 ms
marking	CE
threaded length	45 mm
height	18 mm
width	18 mm
depth	64 mm
net weight	0.05 kg

Environment
standards	EN/IEC 60947-5-2 CSA C22.2 No 14 UL 508
product certifications	CULus RCM E2 EAC Ecolab
ambient air temperature for operation	-25…70 °C
ambient air temperature for storage	-40…80 °C
vibration resistance	+/-1 mm conforming to IEC 60068-2-6 (f = 10…55 Hz)
shock resistance	30 gn in all 3 axes for 11 ms conforming to IEC 60068-2-27
resistance to electrostatic discharge	8 kV level 4 conforming to IEC 61000-4-2
resistance to electromagnetic fields	10 V/m level 3 conforming to IEC 61000-4-3
resistance to fast transients	1 kV level 3 conforming to IEC 61000-4-4

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
Environmental Disclosure	Product Environmental Profile
