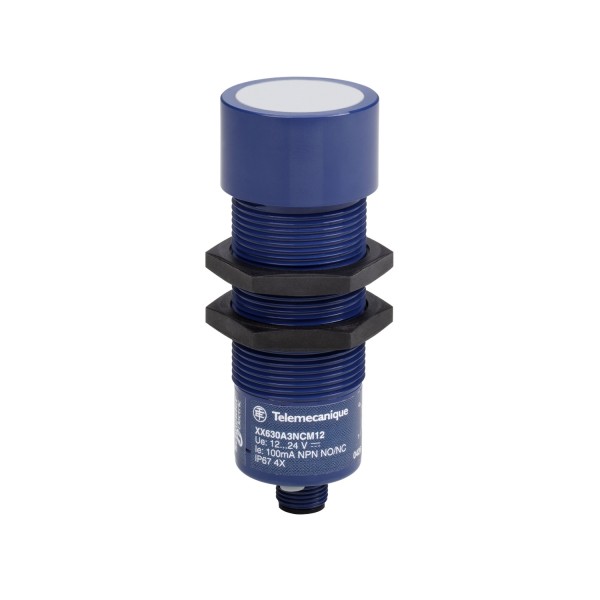

ultrasonic sensor cylindrical M30 - 2 emptying levels - Sn 2 m - 2NO

Details

Main
range of product	OsiSense XX
sensor type	Ultrasonic sensor
series name	Application
sensor name	XX2
sensor design	Cylindrical M30
detection system	Diffuse
[Sn] nominal sensing distance	2 m adjustable with teach push-button
material	Plastic
type of output signal	Discrete
discrete output function	1 NO + 1 NC
wiring technique	4-wire
discrete output type	PNP
[Us] rated supply voltage	12...24 V DC reverse polarity protection
electrical connection	Male connector M12 4 pins
product specific application	For 2 emptying levels monitoring
[Sd] sensing range	0,12…2 m
beam angle	10 °
IP degree of protection	IP67 IEC 60529

Complementary
enclosure material	ULTEM
front material	Silicone
thread type	M30 x 1.5
supply voltage limits	10…28 V DC
function available	Without synchronisation mode
[Sa] assured operating distance	0,12…2 m teach mode)
maximum differential travel	2,5 mm
blind zone	0…120 mm
transmission frequency	200 kHz
repeat accuracy	0,9 %
deviation angle from 90° of object to be detected	-10…10 °
minimum size of detected object	Cylinder diameter 1.6 mm 0,635 m
status LED	Output state 1 LED green/red (flashing)) Setting-up assistance 1 LED green/red (flashing)) Distance indication 1 LED yellow)
current consumption	100 mA
maximum switching current	100 mA overload and short-circuit protection
maximum voltage drop	1 V
maximum delay first up	1000 ms
maximum delay response	150 ms
maximum delay recovery	1000 ms
marking	CE
threaded length	45 mm
height	35 mm
width	35 mm
depth	85 mm
net weight	0,091 kg

Environment
standards	IEC 60947-5-2
product certifications	UL CCSAus
ambient air temperature for operation	0…50 °C
ambient air temperature for storage	-10…80 °C
vibration resistance	+/-1 mm 10…55 Hz)IEC 60068-2-6
shock resistance	30 gn in all 3 axes 11 ms IEC 60068-2-27
resistance to electrostatic discharge	8 kV level 4 IEC 61000-4-2
resistance to electromagnetic fields	10 V/m level 3 IEC 61000-4-3
resistance to fast transients	1 kV level 3 IEC 61000-4-4

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Keskkonnaalane avaldus	Toote keskkonnaprofiil
Ringlusprofiil	Kasutuselt kõrvaldamise teave

Contractual warranty
Garantii	18 months
