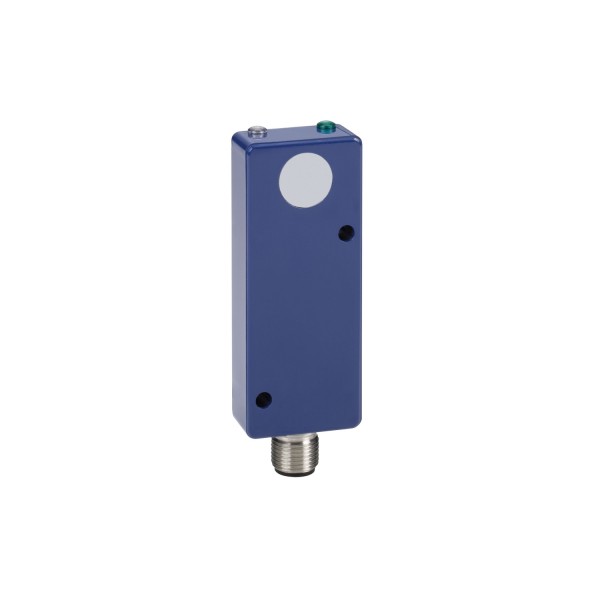

ultrasonic sensor parallelepipedic 16x30x74 - receiver - Sn 0.6m 2NC - M12 con

Ülevaaded: 0

Tootekood: XXRK1A3KBM12

Quick Overview

Saadavus: Ei saa enam tellida

480,53 € (ilma KM-ta)

Details

Main
range of product
OsiSense XX
sensor type
Ultrasonic sensor receiver
series name
General purpose
sensor name
XXR
sensor design
Flat form 74 x 30 x 16
detection system
Thru beam (need a transmitter XXTK1A3M12)
[Sn] nominal sensing distance
0.61 m fixed
material
Plastic
type of output signal
Discrete
discrete output function
2 NC
wiring technique
4-wire
discrete output type
PNP and NPN
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
electrical connection
Male connector M12 4 pins
[Sd] sensing range
0…0.61 m
IP degree of protection
IP67 conforming to IEC 60529
Complementary
enclosure material
ULTEM
front material
Silicone
supply voltage limits
10…28 V DC
[Sa] assured operating distance
0…0.61 m
current consumption
40 mA
maximum switching current
100 mA with overload and short-circuit protection
maximum voltage drop
1 V
switching frequency
<= 40 Hz
maximum delay first up
100 ms
maximum delay response
10 ms
maximum delay recovery
10 ms
marking
CE
height
30 mm
width
17 mm
depth
85 mm
net weight
0.05 kg
Environment
standards
IEC 60947-5-2
product certifications
UL
ambient air temperature for operation
0…60 °C
ambient air temperature for storage
-40…80 °C
vibration resistance
+/-1 mm conforming to IEC 60068-2-6 (f = 10…55 Hz)
shock resistance
30 gn in all 3 axes for 11 ms conforming to IEC 60068-2-27
resistance to electrostatic discharge
8 kV level 4 conforming to IEC 61000-4-2
resistance to electromagnetic fields
10 V/m level 3 conforming to IEC 61000-4-3
resistance to fast transients
1 kV level 3 conforming to IEC 61000-4-4
Offer Sustainability
Sustainable offer status
Green Premium product
REACh Regulation
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Mercury free
Yes
RoHS exemption information
Environmental Disclosure
Circularity Profile
Contractual warranty
Warranty
18 months
