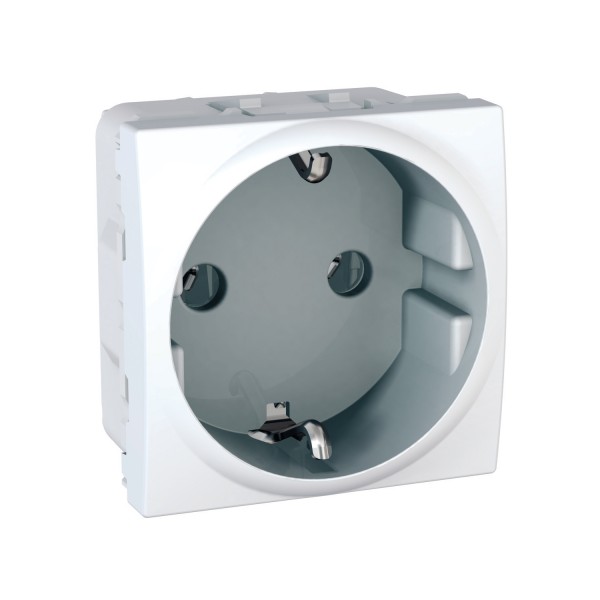

Unica - 1 S.O. - 2P+E, DE - 2 m - white

Ülevaaded: 0

Tootekood: MGU3.036.18

Quick Overview

Saadavus: Tellimisel

2,60 € (ilma KM-ta)

Details

Main
range
Unica
device application
Power supply
product or component type
Socket-outlet
aesthetic name
Unica (standard aesthetic)
device presentation
Mechanism
socket number
1
outlet poles configuration
2P + E
outlet standard
German
outlet standard description
Side earth
Complementary
rated current
16 A at 250 V AC
network frequency
50/60 Hz
number of modules
2 modules
fixing mode
Clip-in
colour tint
White
connections - terminals
Screw terminals
cable cross section
0…4 mm² - cable stiffness: flexible
0…4 mm² - cable stiffness: rigid
minimum load breaking capacity
100 operations 1.25 In and 1.1 Un, cos phi = 0.6
electrical durability
10000 cycles, cos phi = 0.8
insulation resistance
> 5 MOhm at 500 V
dielectric strength
2000 V
material
ASA + PC: mechanism cover
quantity per set
Set of 1 blister
product certifications
FR.ME63.B02375 AC
embedding depth
30 mm
depth
40 mm
width
45 mm
height
45 mm
net weight
0.0349 kg
Environment
ambient air temperature for operation
15…30 °C
ambient air temperature for storage
0…35 °C
IK degree of protection
IK01
IP degree of protection
IP20
environmental characteristic
UV resistant
Acetone
Window-cleaning fluid
Bleach
Liquid soap
Alcohol
Petrol
Oil
Ammonia
environmental health and issues
Halogen free
Offer Sustainability
Sustainable offer status
Green Premium product
REACh Regulation
REACh free of SVHC
Yes
EU RoHS Directive
Toxic heavy metal free
Yes
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
China RoHS declaration
 Pro-active China RoHS declaration (out of China RoHS legal scope)
Environmental Disclosure
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Contractual warranty
Warranty
18 months
