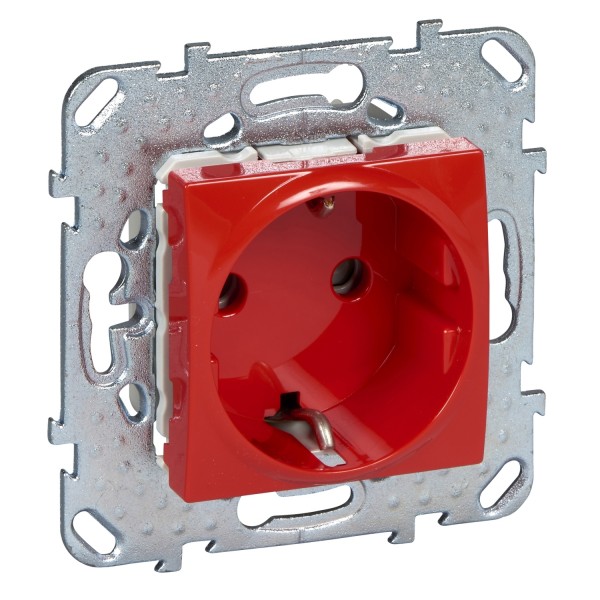

Unica - 1 S.O. (frame) - 2P+E, shutters, DE - 2 m

Details

Main
range	Unica
device application	Power supply
product or component type	Socket-outlet
aesthetic name	Unica (standard aesthetic)
device presentation	Mechanism with plastic fixing frame
socket number	1
outlet poles configuration	2P + E with shutters
outlet standard	German
outlet standard description	Side earth

Complementary
rated current	16 A at 250 V AC
network frequency	50/60 Hz
number of modules	2 modules
fixing mode	Screws
colour tint	Red
connections - terminals	Screw terminals
cable cross section	0…4 mm² - cable stiffness: flexible 0…4 mm² - cable stiffness: rigid
minimum load breaking capacity	100 operations 1.25 In and 1.1 Un, cos phi = 0.6
electrical durability	10000 cycles, cos phi = 0.8
insulation resistance	> 5 MOhm at 500 V
dielectric strength	2000 V
material	PA (polyamide) 6: mechanism cover Zamak: fixing frame
surface finish	Brilliant
quantity per set	Set of 1 film
product certifications	FR.ME63.B02375 AC
embedding depth	30 mm
depth	40 mm
width	70.9 mm
height	70.9 mm
net weight	0.0452 kg
surface treatment	Untreated

Environment
ambient air temperature for operation	15…30 °C
ambient air temperature for storage	0…35 °C
IK degree of protection	IK01
IP degree of protection	IP20
environmental characteristic	Liquid soap Acetone Ammonia Window-cleaning fluid Bleach Oil UV resistant Petrol Alcohol
environmental health and issues	Halogen free

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
REACh free of SVHC	Yes
EU RoHS Directive	Compliant EU RoHS Declaration
Toxic heavy metal free	Yes
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration Pro-active China RoHS declaration (out of China RoHS legal scope)
Environmental Disclosure	Product Environmental Profile
Circularity Profile	No need of specific recycling operations
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Contractual warranty
Warranty	18 months
