  • Unica - 2 RJ45 socket (S-One) - 2x1 m - Cat.5e, UTP - white

Product was successfully added to your shopping cart.

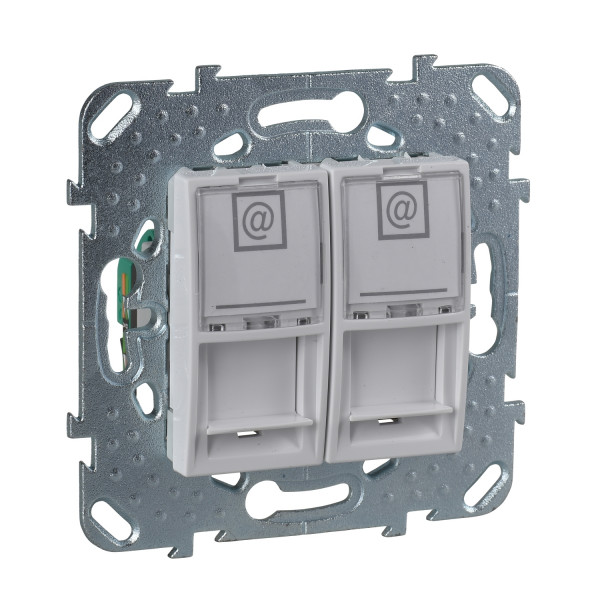

Unica - 2 RJ45 socket (S-One) - 2x1 m - Cat.5e, UTP - white

Ülevaaded: 0

Tootekood: MGU5.2020.18ZD

Quick Overview

Saadavus: Tellimisel

32,85 € (ilma KM-ta)

Details

Main
range
Unica
aesthetic name
Unica (standard aesthetic)
product or component type
RJ45 connector
device application
Communication
device presentation
Mechanism with fixing frame and central plate
colour tint
White (RAL 9003)
data socket type
RJ45 4 contact(s) Cat.5e < 155 MHz
provided equipment
Label holder
Protective flap
Complementary
communication network type
1000BASE-T
communication port protocol
ATM 155 Mbps
number of modules
2 x 1 modules
socket number
2
type of footprint
Infraplus
connector type
S-One
cable shielding type
U/UTP
organization of wire
Unshielded twisted pair
connections - terminals
Click
marking
Colour coding
device mounting
Flush
fixing mode
Screws
By screw: shield
installation direction
Straight
material
ASA + PC: mechanism cover
Zamak: fixing frame
depth
36 mm
width
70.9 mm
height
70.9 mm
embedding depth
25 mm
Environment
IP degree of protection
IP40
IK degree of protection
IK01
ambient air temperature for operation
15…30 °C
ambient air temperature for storage
0…35 °C
environmental characteristic
Alcohol
Ammonia
UV resistant
Window-cleaning fluid
Petrol
Liquid soap
Acetone
Oil
Bleach
environmental health and issues
Halogen free
standards
ISO 8877
Offer Sustainability
Sustainable offer status
Green Premium product
EU RoHS Directive
Toxic heavy metal free
Yes
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
China RoHS declaration
 Pro-active China RoHS declaration (out of China RoHS legal scope)
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Contractual warranty
Warranty
18 months
