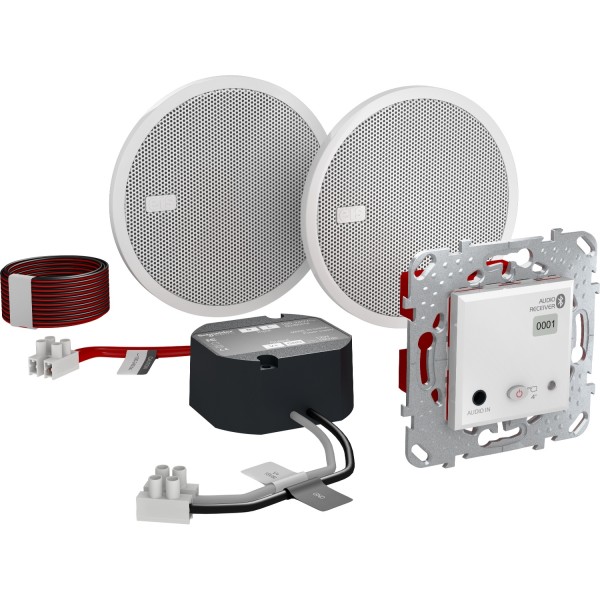

Unica - bluetouh audio receiver - device kit

Details

Complementary
device mounting	Flush
fixing mode	Screws Claws
device composition	1 audio receiver 1 power supply 2 2.5" loudspeaker 1 mounting frame
communication network type	Bluetooth (10 m)
connector type	Jack (3.5 mm), 62 Ohm
colour tint	White (RAL 9003)
[Ue] rated operational voltage	Audio receiver: 15/16 V DC Power supply: 265 V AC 47...63 Hz
current consumption	4.5...100 mA with bluetooth 4.5...75 mA with jack
maximum power consumption in W	12 W for power supply
input voltage	100 mVrms with jack
output voltage	15 V DC power supply:
output current	800 mA power supply
nominal output power	2.5 W 0 W 1.5 W 5 W
Left/right channel separation	58 dB
bandwidth	45…20000 Hz
signal to noise ratio	84 dB
Bluetooth identifi cation number	0…9999
transmission frequency	2.4 GHz
RF Power transmitter	7 dBm
connections - terminals	Screw terminals
material	ABS (acrylonitrile butadiene-styrene): centre plate
net weight	0.9 kg

Environment
IP degree of protection	IP20

Offer Sustainability
EU RoHS Directive	Under investigation
