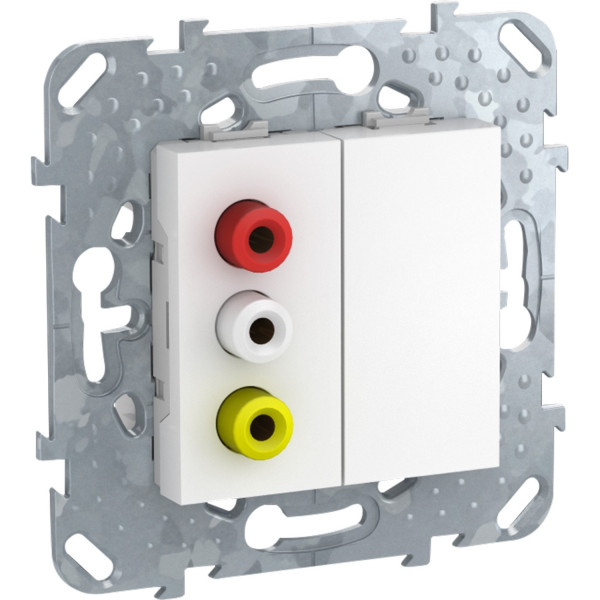

Unica - data socket - RCA female - blind cover - 2 modules

Details

Main
range	Unica
product or component type	Data socket
connector type	RCA
electrical circuit type	Video Audio
device presentation	Mechanism with zamak fixing frame
colour tint	White (RAL 9003)
type of packing	Group

Complementary
device mounting	Flush
fixing mode	By screws
quantity per set	Set of 10
sale per indivisible quantity	1
connections - terminals	Screw terminals
clamping connection capacity	<= 1.5 mm² for stranded cable(s) <= 1.5 mm² for flexible cable(s) <= 1.5 mm² for rigid cable(s)
wire stripping length	8 mm
material	Thermoplastic ABS-UV stabilised: centre plate PC (polycarbonate) GF10 FR: casing Zamak: fixing frame
height	71 mm
width	71 mm
depth	28 mm
embedding depth	19 mm
net weight	0.075 kg

Environment
ambient air temperature for storage	-5…50 °C
ambient air temperature for operation	-5…40 °C
IP degree of protection	IP21
IK degree of protection	IK04
environmental characteristic	Window-cleaning fluid Alcohol Acetone Ammonia UV resistant Oil Petrol Bleach Liquid soap
environmental health and issues	Halogen free
