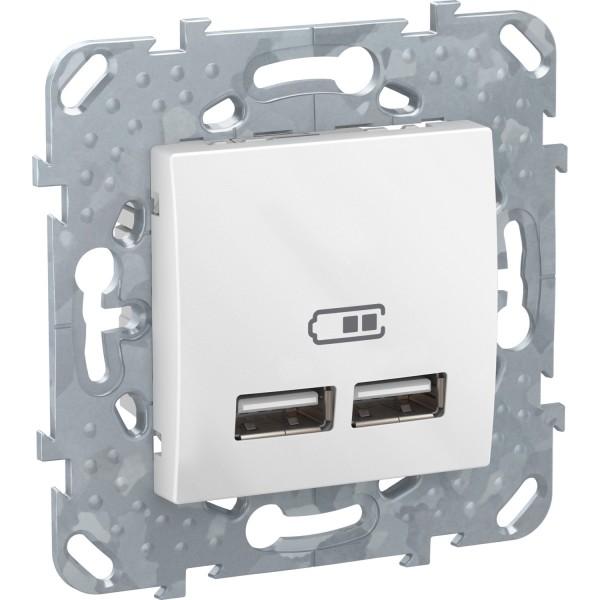

Unica - Double USB charger - 2.1 A

Details

Complementary
device application	Charger
device mounting	Flush
colour tint	White
connector type	USB 2.0
[Ue] rated operational voltage	100...240 V AC 50/60 Hz +/- 10 %
maximum power consumption in W	0.1 W
nominal output power	10.5 W
input power	12 W
service life in hours	30000 h 10.5 W
socket number	2
integrated connection type	2 USB 2.0 port 5 V DC, maximum load current: 2.1 A
material	ABS (acrylonitrile butadiene-styrene): centre plate PC (polycarbonate) GF10 FR: casing PC (polycarbonate) GF10 FR: internal cover
protection type	Short-circuit protection
number of terminals	2 screw terminals
shape of screw head	Pozidriv No 1
clamping connection capacity	2 x 0.75...2 x 2.5 mm² for rigid cable(s) 2 x 0.75...2 x 2.5 mm² for flexible cable(s) 2 x 0.75...2 x 2.5 mm² for stranded cable(s)
wire stripping length	8 mm
product compatibility	All devices fulfilling the EN 62684 standard
fixing mode	Screws or claws
type of packing	Flow-pack
ambient air temperature for operation	-5…40 °C
ambient air temperature for storage	-5…50 °C
standards	2004/108/EC EN 60950-1 EN 62684 WEEE directive 2002/96/EC ETSI EN 301 489-4 EU directive 2002/95/EC 2006/95/EC
height	71 mm
width	71 mm
depth	42 mm
embedding depth	30.8 mm
net weight	0.088 kg

Environment
electrical insulation class	Class II
environmental characteristic	REACH Regulation (EC) No 1907/2006
IK degree of protection	IK04
IP degree of protection	IP20

Offer Sustainability
EU RoHS Directive	Under investigation
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
