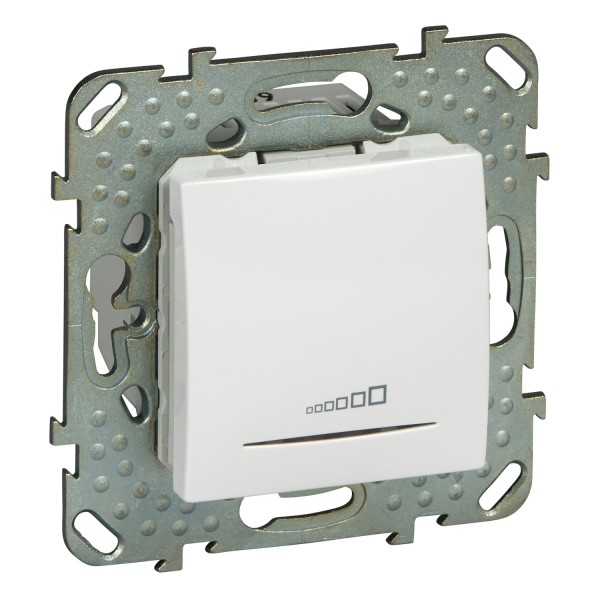

Unica - pushbutton dimmer - 230 VAC - 20...250 W/VA

Details

Main
aesthetic name	Unica (standard aesthetic)
product or component type	Push-button dimmer
device presentation	Mechanism with zamak fixing frame
fixing mode	Screws
dimmer application	Fan Resistive load Inductive load
[Ue] rated operational voltage	230 V AC 50 Hz
number of modules	2 modules
cover plate colour tint	White

Complementary
dimmer control	Impulse
maximum permanent current	1.5 A
total number of wires	3
load type	230 V AC incandescent lamp - 20...250 W 230 V AC halogen lamp - 20...350 W Low voltage halogen lamp with ferromagnetic transformer - 20...350 VA Low voltage halogen lamps with toroidal transformer - 20...300 VA 230 V AC fan - 20...200 W 230 V AC convector - 20...350 W Low voltage halogen lamp with electronic transformer - 20...350 VA
protection type	Electronic overvoltage protection Current protection
pilot light	Blue neon indicator lamp
marking	L+N
connections - terminals	Screw terminals
clamping connection capacity	<= 2 x 2.5 mm² for flexible cable(s) <= 2 x 2.5 mm² for rigid cable(s)
connected auxiliaries	Maximum 5 with light indication Maximum 25 auxiliary switches
material	ASA + PC: mechanism cover Zamak: fixing frame
standards	EN 60669-2-1
product certifications	CE AENOR
ambient air temperature for operation	5…30 °C
ambient air temperature for storage	-20…60 °C
embedding depth	34 mm
depth	47 mm
width	70.9 mm
height	70.9 mm
net weight	0.1125 kg

Environment
IK degree of protection	IK01
IP degree of protection	IP20
environmental characteristic	Window-cleaning fluid Petrol Oil Alcohol Ammonia UV resistant Acetone Bleach Liquid soap
environmental health and issues	Halogen free

Offer Sustainability
Sustainable offer status	Green Premium product
EU RoHS Directive	Compliant EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration Product out of China RoHS scope. Substance declaration for your information
Environmental Disclosure	Product Environmental Profile
Circularity Profile	End of Life Information
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Contractual warranty
Warranty	18 months
