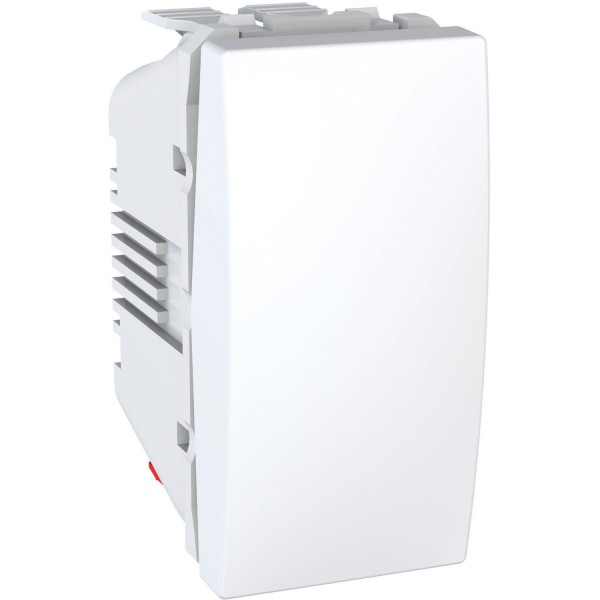

Unica - rocker switch - 2-way - 10 AX 250 VAC - 1 m

Details

Complementary
rated current	10 AX at 250 V AC 50/60 Hz
electrical durability	10000 cycles
insulation resistance	> 5 MOhm at 500 V
dielectric strength	2000 V
minimum load breaking capacity	200 operations 1.25 In and 1.1 Un, cos phi = 0.3
opening distance	> 3 mm
actuator	Rocker
number of modules	1 module
connections - terminals	Screwless terminals
cable cross section	0…2.5 mm² rigid cable 0…2.5 mm² flexible cable
material	ASA + PC: mechanism cover
fixing mode	Clip-in
width	22.5 mm
height	45 mm
depth	34 mm
embedding depth	22 mm
net weight	0.0191 kg
ambient air temperature for operation	25…35 °C
ambient air temperature for storage	0…50 °C
standards	LV directive EMC directive EN 60669-1

Environment
IP degree of protection	IP20
IK degree of protection	IK01
environmental characteristic	Oil Bleach Ammonia Petrol Window-cleaning fluid UV resistant Alcohol Liquid soap Acetone
environmental health and issues	Halogen free

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
REACh free of SVHC	Yes
EU RoHS Directive	Compliant EU RoHS Declaration
Toxic heavy metal free	Yes
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration Pro-active China RoHS declaration (out of China RoHS legal scope)
Environmental Disclosure	Product Environmental Profile
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Contractual warranty
Warranty	18 months
