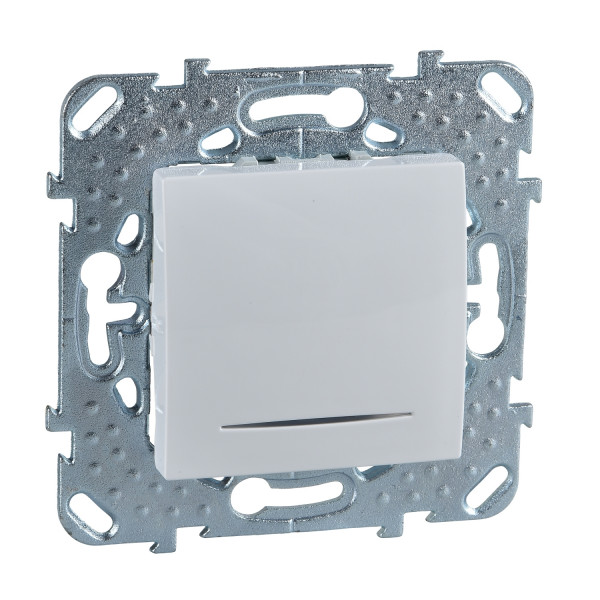

Unica - rocker switch - intermediate - 10 AX 250 VAC - 2 m

Details

Main
Range of product	Unica
aesthetic name	Unica (standard aesthetic)
product or component type	Switch
device presentation	Mechanism with zamak fixing frame
switch function	Intermediate
number of rocker	1
device application	Control
provided equipment	Internal power connection
colour tint	White

Complementary
rated current	10 AX at 250 V AC 50/60 Hz
electrical durability	10000 cycles
insulation resistance	> 5 MOhm at 500 V
dielectric strength	2000 V
minimum load breaking capacity	200 operations 1.25 In and 1.1 Un, cos phi = 0.3
opening distance	> 3 mm
actuator	Rocker
number of modules	2 modules
pilot light	LED, colour: blue, current consumption: 0.15 mA, temperature rise: 15 °C
connections - terminals	Screwless terminals
cable cross section	0…2.5 mm² rigid cable 0…2.5 mm² flexible cable
material	Zamak: fixing frame
surface finish	Untreated
fixing mode	Screws
width	70.9 mm
height	70.9 mm
depth	34 mm
embedding depth	22 mm
net weight	0.0627 kg
ambient air temperature for operation	25…35 °C
ambient air temperature for storage	0…50 °C
standards	EN 60669-1 EMC directive LV directive
product certifications	FR.ME63.B02736

Environment
IP degree of protection	IP20
IK degree of protection	IK01
environmental characteristic	Window-cleaning fluid Acetone Ammonia Oil Alcohol Liquid soap UV resistant Petrol Bleach
environmental health and issues	Halogen free

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
REACh free of SVHC	Yes
EU RoHS Directive	Compliant EU RoHS Declaration
Toxic heavy metal free	Yes
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration Pro-active China RoHS declaration (out of China RoHS legal scope)
Environmental Disclosure	Product Environmental Profile
Circularity Profile	No need of specific recycling operations
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Contractual warranty
Warranty	18 months
