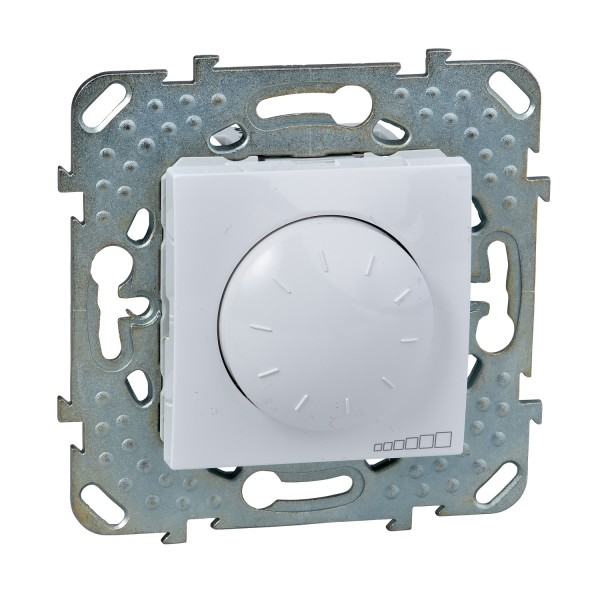

Unica - rotary dimmer - 230 VAC - 40...400 W/VA

Details

Main
aesthetic name	Unica (standard aesthetic)
product or component type	Rotary dimmer
device presentation	Mechanism with zamak fixing frame
fixing mode	Screws
dimmer application	Inductive load Resistive load
[Ue] rated operational voltage	230 V AC 50 Hz
number of modules	2 modules
cover plate colour tint	White

Complementary
dimmer control	ON/OFF push 270° rotary setting
maximum permanent current	1.74 A
total number of wires	2
load type	230 V AC halogen lamp - 40...400 W 230 V AC incandescent lamp - 40...400 W Low voltage halogen lamp with ferromagnetic transformer - 40...400 VA
protection type	Fuse protection
fuse type	4 Ah 5 x 20 mm 230 V 50 Hz
marking	L+N
connections - terminals	Screw terminals
clamping connection capacity	<= 2 x 2.5 mm² for flexible cable(s) <= 2 x 2.5 mm² for rigid cable(s)
connected auxiliaries	2-way switch
material	ASA + PC: mechanism cover Zamak: fixing frame
standards	EN 60669-2-1
product certifications	CE
ambient air temperature for operation	5…30 °C
ambient air temperature for storage	-20…60 °C
embedding depth	34 mm
depth	54 mm
width	70.9 mm
height	70.9 mm
net weight	0.1055 kg

Environment
IK degree of protection	IK01
IP degree of protection	IP20
environmental characteristic	Bleach UV resistant Petrol Acetone Ammonia Window-cleaning fluid Liquid soap Alcohol Oil
environmental health and issues	Halogen free

Offer Sustainability
Sustainable offer status	Green Premium product
EU RoHS Directive	Compliant EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration Product out of China RoHS scope. Substance declaration for your information
Environmental Disclosure	Product Environmental Profile
Circularity Profile	End of Life Information
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Contractual warranty
Warranty	18 months
