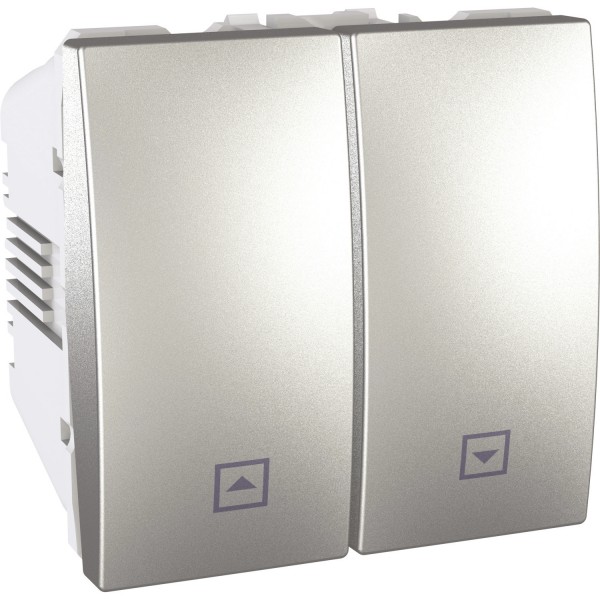

Unica Top/Class - rocker switch - 10 A, 250 VAC - 2 m

Details

Complementary
contacts type and composition	1 C/O
mechanical interlocking	Interlock between up/down
[Iu] rated interrupted current	2.5 A for motor
opening distance	> 3 mm
marking	UP Down
connections - terminals	Screwless terminals
cable cross section	2.5 mm² flexible cable 2.5 mm² rigid cable
minimum load breaking capacity	200 operations 1.25 In and 1.1 Un, cos phi = 0.3
electrical durability	40000 cycles, cos phi = 0.6
insulation resistance	> 5 MOhm at 500 V
dielectric strength	2000 V
material	ABS (acrylonitrile butadiene-styrene): mechanism cover
standards	EN 60669-1 EMC directive LV directive
ambient air temperature for operation	25…35 °C
ambient air temperature for storage	0…50 °C
embedding depth	22 mm
depth	34 mm
width	45 mm
height	45 mm
net weight	0.0351 kg

Environment
IK degree of protection	IK01
IP degree of protection	IP20
environmental characteristic	Oil Ammonia UV resistant Alcohol Window-cleaning fluid Petrol Acetone Liquid soap Bleach
environmental health and issues	Halogen free

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
REACh free of SVHC	Yes
EU RoHS Directive	Compliant EU RoHS Declaration
Toxic heavy metal free	Yes
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration Pro-active China RoHS declaration (out of China RoHS legal scope)
Environmental Disclosure	Product Environmental Profile
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Contractual warranty
Warranty	18 months
