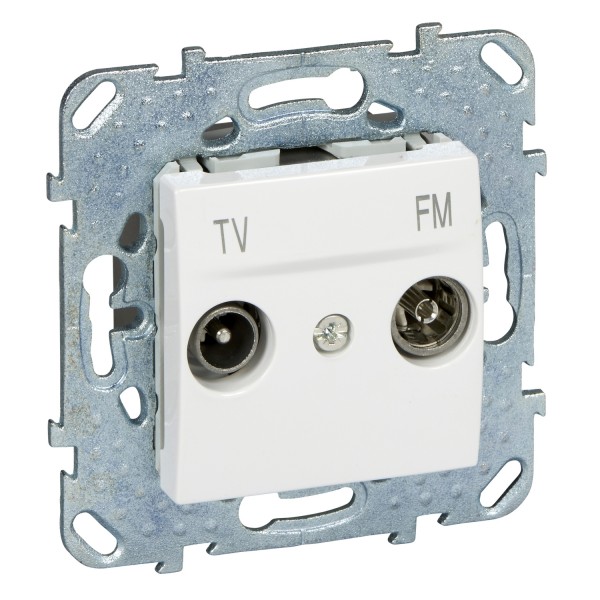

Unica - TV/FM socket (zamak) - terminal socket - white

Ülevaaded: 0

Tootekood: MGU5.452.18ZD

Quick Overview

Saadavus: Tellimisel

19,98 € (ilma KM-ta)

Details

Main
range
Unica
aesthetic name
Unica (standard aesthetic)
product or component type
TV/FM socket
device application
Media device support
device presentation
Mechanism with fixing frame and central plate
TV socket type
End-of-line (terminal socket)
colour tint
White (RAL 9003)
condition of use
Series distribution systems
Complementary
TV connector
Male IEC 9.52 mm
radio connector
Female IEC 9.52 mm
device composition
Support ring
path attenuation
13.5 dB TV/UHF signal125…860 MHz
13.5 dB TV/VHF signal47…68 MHz
27 dB R signal87.5…108 MHz
DC current flow
Yes
number per line
1
number of modules
2 modules
material
ASA + PC: mechanism cover
Zamak: fixing frame
surface treatment
Untreated
surface finish
Brilliant
marking
With imprint
device mounting
Flush
fixing mode
Screws
depth
28 mm
width
70.9 mm
height
70.9 mm
embedding depth
18 mm
net weight
0.108 kg
Environment
IP degree of protection
IP20
IK degree of protection
IK01
ambient air temperature for operation
15…35 °C
ambient air temperature for storage
0…35 °C
environmental characteristic
Acetone
Bleach
Ammonia
Petrol
Window-cleaning fluid
UV resistant
Oil
Liquid soap
Alcohol
environmental health and issues
Halogen free
standards
EN 50083-2
EN 50083-4
EMC directive
EN 50083-1
Offer Sustainability
Sustainable offer status
Green Premium product
REACh Regulation
REACh free of SVHC
Yes
EU RoHS Directive
Toxic heavy metal free
Yes
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
China RoHS declaration
 Pro-active China RoHS declaration (out of China RoHS legal scope)
Environmental Disclosure
Contractual warranty
Warranty
18 months
