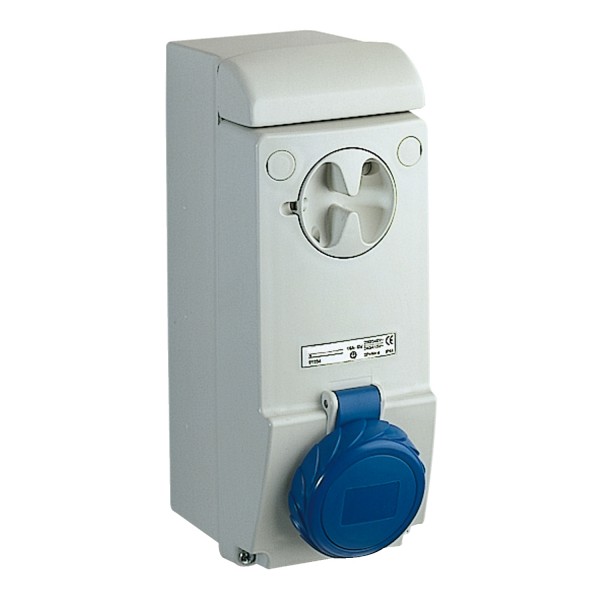

Unika interlocked socket - 32 A - 3P + N + E - 200...250 V AC - IP65

Details

Complementary
mounting mode	Wall-mounted
[In] rated current	32 A
[Ue] rated operational voltage	200...250 V
network frequency	50/60 Hz
ground lug clockwise position	9 h
protection type	Without protection
plug, socket material	Housing: self-extinguishing engineering polymer
contacts material	Sleeves: nickel plated brass
connections - terminals	Captive screws
maximum cable cross section	10 mm²
maximum cable outer diameter	25 mm
cable entry	Cable gland
thread type	Pg 21
net weight	1.205 kg
base dimension	103 x 255 mm
height	255 mm
width	103 mm
depth	153 mm
colour	Grey (RAL 7035)
voltage colour	Blue

Environment
standards	IEC 60309-1 IEC 60309-2
IP degree of protection	IP65 conforming to IEC 60529
IK degree of protection	IK09 conforming to EN 62262
fire resistance	750 °C conforming to IEC 60695-2-11
relative humidity	50 % at 40 °C 70 % at 30 °C 90 % at 20 °C
ambient air temperature for operation	35 °C ( 86400 s ) -25…40 °C

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
EU RoHS Directive	Compliant EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration Product out of China RoHS scope. Substance declaration for your information
Environmental Disclosure	Product Environmental Profile
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Contractual warranty
Warranty	18 months
