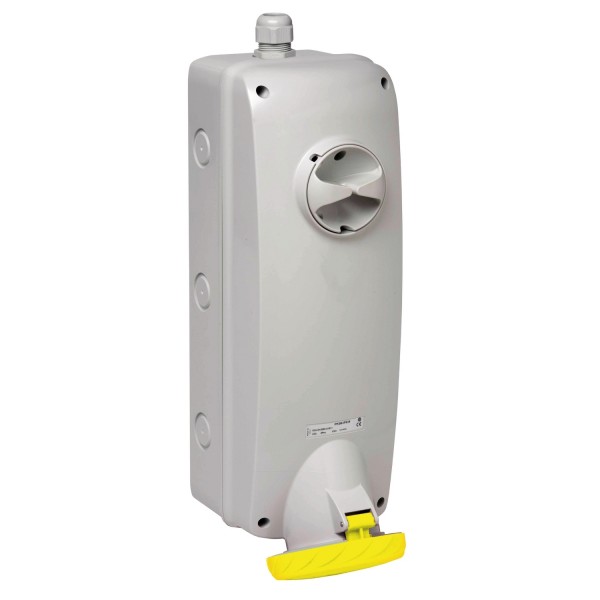

Unika interlocked socket - 63 A - 3P + E - 100...130 V AC - IP65

Details

Complementary
mounting mode	Panel-mounted
[In] rated current	63 A
[Ue] rated operational voltage	100...130 V
network frequency	50/60 Hz
ground lug clockwise position	4 h
protection type	Without protection
plug, socket material	Housing: self-extinguishing polymer
contacts material	Pins: stainless steel Screws: stainless steel
connections - terminals	Captive screws
maximum cable cross section	35 mm²
maximum cable outer diameter	25 mm
net weight	3 kg
base dimension	140 x 430 mm
height	430 mm
width	140 mm
depth	116 mm
colour	Grey (RAL 7035)
voltage colour	Yellow

Environment
standards	IEC 60309-2 IEC 60309-1
IP degree of protection	IP65 conforming to IEC 60529
IK degree of protection	IK09 conforming to EN 62262
fire resistance	750 °C conforming to IEC 60695-2-11
relative humidity	50 % at 40 °C 70 % at 30 °C 90 % at 20 °C
ambient air temperature for operation	35 °C ( 86400 s ) -25…40 °C

Contractual warranty
Warranty	18 months
