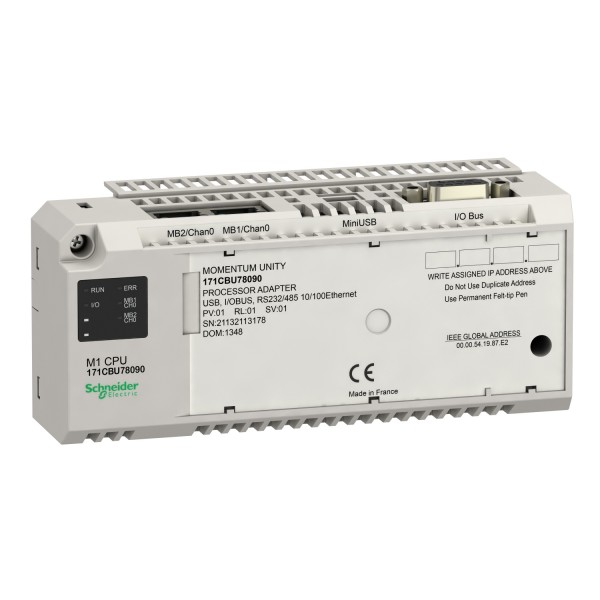

Unity M1 processor - RS232/485 - USB

Details

Main
range of product	Modicon Momentum automation platform
product or component type	Processor
integrated connection type	USB port

Complementary
concept	Transparent Ready class B
web services	Home pages Properties CPU status
software designation	Unity Pro
communication service	Modbus messaging 100 words, 200 I/O message per second
processor name	Spear 320s
word length	32 bit
supply voltage limits	4,75…5,25 V
clock frequency	333 MHz
topology	Multidrop Modbus
communication port protocol	Modbus RS485/RS232 - 1 RJ45 19200 bps - 2-wire
method of access	Master/slave
control parameter	CRC-16 for Modbus
addressing	1...247 Modbus
fail state	Safe I/O mode
memory description	Program memory IEC 3584 kB Program memory LL984 3584 kB
register words	26048
I/O limit processor capacity	2048 inputs/2048 outputs
number of devices	32 Modbus
exact time for 1 Kinstruction	83 ns
local signalling	Processor running (RUN) 1 LED green) Processor or system fault (ERR) 1 LED red) I/O module fault (I/O) 1 LED red) Channel 0 operating (CH0) 1 LED yellow) Channel 1 operating (CH1) 1 LED yellow)
marking	CE
current consumption	500 mA 5 V DC
module format	Standard
product mounting	35 mm symmetrical DIN rail
height	60,6 mm
width	144 mm
depth	53,47 mm
net weight	0,159 kg

Environment
material	Lexan
dielectric strength	0 V not isolated RS485/RS232 5000 V for 1 minute RS485
product certifications	C-Tick FM
standards	EN/IEC 61131-2 CSA C22.2 No 142 UL 508
IP degree of protection	IP20
shock resistance	15 gn 11 ms sinusoidal vibrations
resistance to electrostatic discharge	6 kV contact EN/IEC 61131-2 zone B 6 kV contact IACS E10 8 kV on air EN/IEC 61000-4-2
resistance to electromagnetic fields	15 V/m 80...2700 MHz EN/IEC 61000-4-3
ambient air temperature for operation	0…60 °C
ambient air temperature for storage	-40…85 °C
relative humidity	5…96 %
operating altitude	<= 2000 m

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon
Keskkonnaalane avaldus	Toote keskkonnaprofiil
Ringlusprofiil	Kasutuselt kõrvaldamise teave
WEEE	Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
