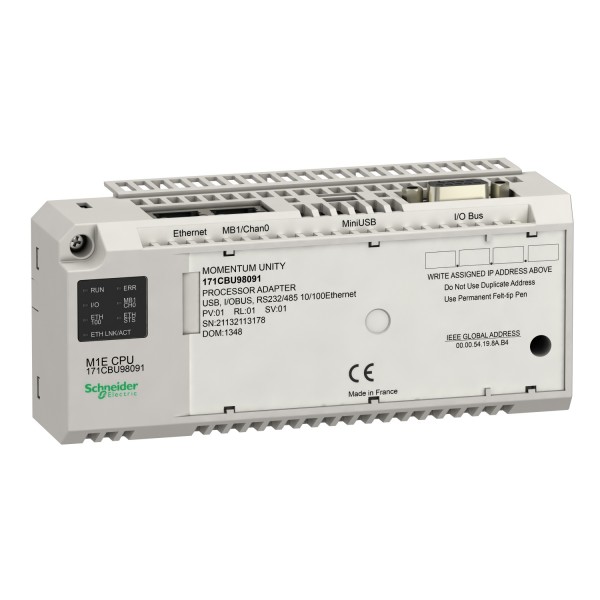

Unity M1E processor - RS232/485 - Ethernet - USB - I/O bus

Details

Main
range of product	Modicon Momentum automation platform
product or component type	Processor
product compatibility	Modicon STB I/O
integrated connection type	USB port Ethernet

Complementary
concept	Transparent Ready class B
web services	Bandwidth monitoring Properties CPU status Ethernet statistics Home pages
software designation	Unity Pro
communication service	Modbus messaging 125 words, 200 I/O message per second Global Data, 2200 I/O message per second Modbus TCP I/O Scanner and Messaging
processor name	Spear 320s
word length	32 bit
supply voltage limits	4.75…5.25 V
clock frequency	333 MHz
topology	Multidrop Modbus Star Modbus TCP
communication port protocol	Modbus RS485/RS232 - 1 RJ45 19200 bps - 2-wire Modbus TCP Ethernet - 1 RJ45 10/100 Mbps - twisted shielded pairs cable CAT 5E UTP
method of access	Client/server Master/slave
control parameter	CRC-32 for Modbus TCP/IP CRC-16 for Modbus
addressing	1...247 Modbus Unique IEEE global address Modbus TCP
fail state	Safe I/O mode
memory description	Program memory IEC 3584 kB Program memory LL984 3584 kB
register words	26048
I/O limit processor capacity	2048 inputs/2048 outputs
number of devices	32 Modbus
exact time for 1 Kinstruction	83 ns
local signalling	1 LED (green)processor running (RUN): 1 LED (red)processor or system fault (ERR): 1 LED (red)I/O module fault (I/O): 1 LED (yellow)channel 0 operating (CH0): 1 LED (green)data rate (ETH 100): 1 LED (green)data rate (ETH LINK): 1 LED (green)status of Ethernet network (ETH STS):
marking	CE
current consumption	500 mA at 5 V DC
module format	Standard
product mounting	35 mm symmetrical DIN rail
height	60.6 mm
width	144 mm
depth	53.47 mm
net weight	0.163 kg

Environment
material	Lexan
dielectric strength	0 V not isolated RS485/RS232 5000 V for 1 minute Ethernet
product certifications	C-Tick FM
standards	UL 508 CSA C22.2 No 142 EN/IEC 61131-2
IP degree of protection	IP20
shock resistance	15 gn during 11 ms sinusoidal vibrations
resistance to electrostatic discharge	6 kV contact conforming to EN/IEC 61131-2 zone B 6 kV contact conforming to IACS E10 8 kV on air conforming to EN/IEC 61000-4-2
resistance to electromagnetic fields	15 V/m 80...2700 MHz conforming to EN/IEC 61000-4-3
ambient air temperature for operation	0…60 °C
ambient air temperature for storage	-40…85 °C
relative humidity	5…96 %
operating altitude	<= 2000 m

Offer Sustainability
Sustainable offer status	Green Premium product
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration
Environmental Disclosure	Product Environmental Profile
Circularity Profile	End of Life Information
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
