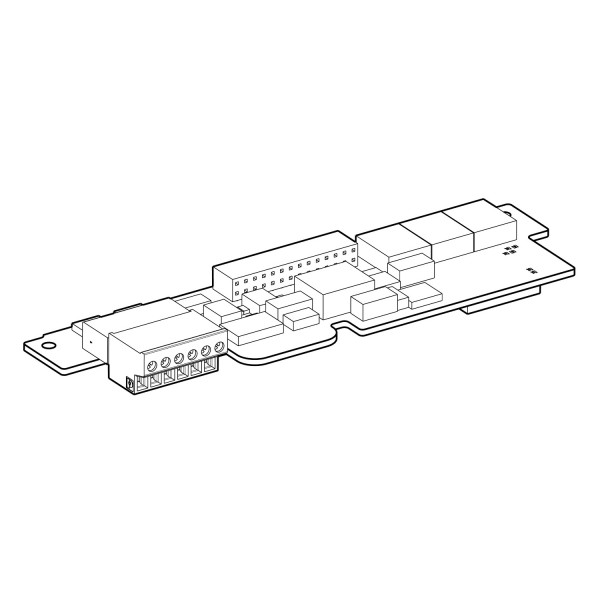

universal encoder interface card - 5 V

Ülevaaded: 0

Tootekood: VW3A3409

Quick Overview

Saadavus: Tellimisel

151,86 € (ilma KM-ta)

Details

Main
range of product
Altivar
product or component type
Encoder interface card
range compatibility
Altivar 71
Altivar 71Q
Altivar Lift
encoder type
SinCos Hiperface
EnDat 2.2
SSI
[Us] rated supply voltage
5 V 5…5,5 V)
8 V 8…8,5 V)
12 V 12…12,5 V)
Complementary
product compatibility
ATV71H...M3383
ATV71H...M3X383
ATV71H...N4383
maximum supply current
0,2 A
protection type
Short-circuit protection
Overload protection
maximum cable distance between devices
50 m
speed feedback resolution
2exp(13) maximum
clock frequency
500 kHz fixed
output type
SinCos 10000 lines maximum
EnDat 2.1 25 bits maximum
SSI Gray or binary with no, odd or even parity, configurable
SinCos Hiperface 10000 lines maximum
electrical connection
Terminal 0.5 mm² AWG 20) <25 m, encoder, 100 mA 4,75 V
Terminal 0.5 mm² AWG 20) <25 m, encoder, 100 mA 7,75 V
Terminal 0.5 mm² AWG 20) <25 m, encoder, 100 mA 14,75 V
Terminal 0.75 mm² AWG 18) <50 m, encoder, 100 mA 4,75 V
Terminal 0.75 mm² AWG 18) <50 m, encoder, 100 mA 7,75 V
Terminal 0.75 mm² AWG 18) <50 m, encoder, 100 mA 14,75 V
Terminal 1 mm² AWG 17) <25 m, encoder, 200 mA 4,75 V
Terminal 1 mm² AWG 17) <25 m, encoder, 200 mA 7,75 V
Terminal 1 mm² AWG 17) <25 m, encoder, 200 mA 14,75 V
Terminal 1.5 mm² AWG 15) <50 m, encoder, 200 mA 4,75 V
Terminal 1.5 mm² AWG 15) <50 m, encoder, 200 mA 7,75 V
Terminal 1.5 mm² AWG 15) <50 m, encoder, 200 mA 14,75 V
net weight
0,2 kg
Offer Sustainability
ELi RoHS direktiiv
Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse)
ELi RoHS deklaratsioon
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Contractual warranty
Garantii
18 months
