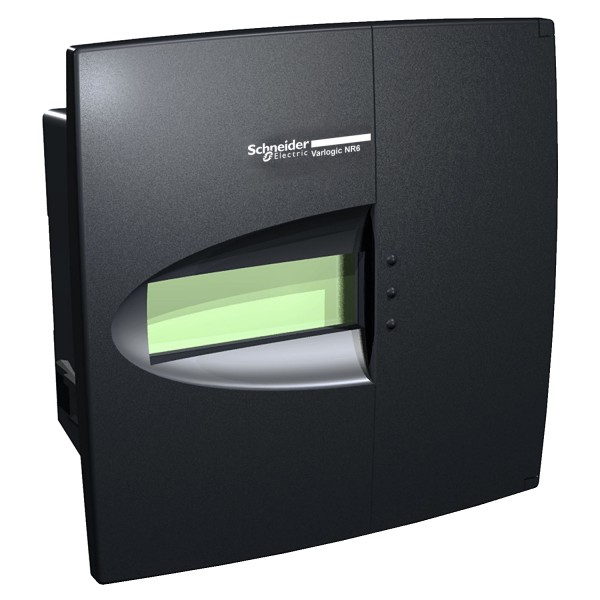

varmeter controller - Varlogic - NR6

Ülevaaded: 0

Tootekood: 52448

Quick Overview

Saadavus: Ei saa enam tellida

302,98 € (ilma KM-ta)

Details

Main
range
VarPlus
range of product
Varlogic N
product name
VarLogic NR
device short name
NR6
product or component type
Power factor controller
language
English
Spanish
Portuguese
French
German
Complementary
number of step output contacts
6
[Us] rated supply voltage
110 V AC 50/60 Hz
220...240 V AC 50/60 Hz
380...415 V AC 50/60 Hz
measurement current
0…5 A
measurement voltage
110 V AC 50/60 Hz
220…240 V AC 50/60 Hz
380…415 V AC 50/60 Hz
operating mode
Manual
colour code
RAL 7016
display type
Backlighted screen 65 x 21 mm
type of measurement
Switching cycles and connected time counter
Connected steps
History of alarms
Ambient temperature inside the cubicle
Cos φ
Network technical data : load and reactive currents, voltage, powers (S, P, Q)
Total voltage harmonic distortion THD (U)
type of alarms
Abnormal cos φ < 0.5 ind or 0.8 cap)message and alarm contact
High current > 115 %)message
Low current < 2.5 %)message
Overcurrent > 115 % I1)message and alarm contact
Overtemperature θ >= θo - 15 °C)fan switch
Overtemperature θ >= θo (θo = 50 °C maximum))message and alarm contact
Overvoltage > 110 % Uo)message and alarm contact
Total harmonic distortion > 7 %)message and alarm contact
Voltage low < 80 % Uo within 1 s)message and alarm contact
Hunting (unstable regulation)message and alarm contact
Low power factormessage and alarm contact
Overcompensationmessage and alarm contact
input type
Insensitive to CT polarity
Insensitive to phase rotation polarity
Current input CT...X/5 A
Phase to phase
Phase to neutral
output type
Free outputs contacts current 1 A 400 V AC 50/60 Hz
Free outputs contacts current 2 A 250 V AC 50/60 Hz
Free outputs contacts current 5 A 120 V AC 50/60 Hz
Free outputs contacts current 0.3 A 110 V DC
Free outputs contacts current 0.6 A 60 V DC
Free outputs contacts current 2 A 24 V DC
settings operating mode
Automatic
Manual
type of setting
Choice of stepping programs circular
Choice of stepping programs linear
Choice of stepping programs normal
Choice of stepping programs optimal
Delay between 2 successive switch on the same step 10...600 s
Target cos phi 0.85 inductive...0.9 capacitive
Step configuration programming
measurement accuracy
+/- 5 %
time delay range
10...120 s
10...600 s on reconnection)
step sequences
1.2.4.8.8.8
1.1.1.1.1.1
1.2.3.4.4.4
1.1.2.3.3.3
1.1.2.2.2.2
1.2.2.2.2.2
1.2.3.3.3.3
1.2.4.4.4.4
mounting location
In cabinet
Panel
mounting support
35 mm DIN rail EN 50022
height
150 mm
width
150 mm
depth
70 mm
net weight
1 kg
Environment
standards
IEC 61010-1
EN 61010-1
IEC 61326
IP degree of protection
Front face IP41
Rear face IP20
ambient air temperature for operation
0…60 °C
ambient air temperature for storage
-20…60 °C
climatic withstand
Ambient air temperature for storage - 20...60 °C
Contractual warranty
Garantii
18 months
