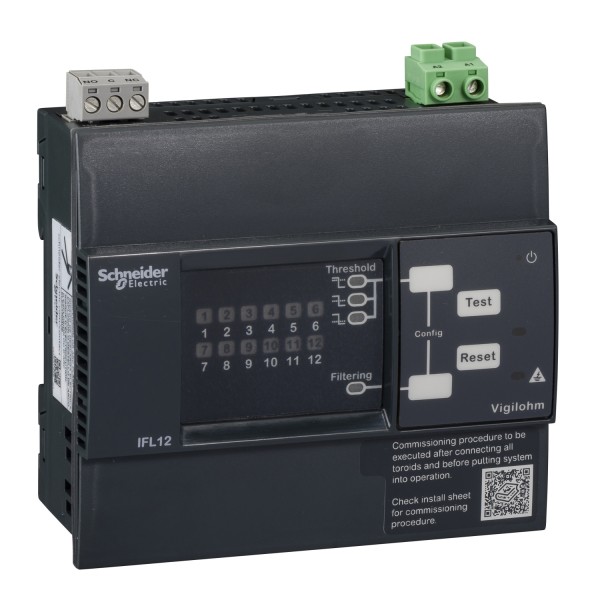

VIGILOHM 12 CHANNEL FAULT LOCATOR

Details

Main
range	Vigilohm
device short name	IFL12
product or component type	Insulation fault locator
device application	Marine application Standard environment application
electrical circuit type	Medium or low disturbed network
electrical circuit type	Power circuit
earthing system	IT

Complementary
network rated voltage	0…1000 V - AC 45...65 Hz 0…1000 V - DC
number of channels	12
local signalling	Yellow indicator light insulation fault Green/red indicator light product status Green indicator light satisfactory insulation Yellow flashing indicator light transient fault Green indicator light configured threshold LED Green indicator light configured filtering LED Yellow steady 1 LED per channel insulation fault Yellow flashing 1 LED per channel transient fault/toroid disconnected
threshold setting	Alarm high, medium, low
alarm per channel	Alarm threshold common to all feeders
response time	<= 5 s
auxiliary supply voltage	100...440 V DC +/- 15 % 100...440 V AC 45...65 Hz +/- 15 %
power consumption in VA	20 VA
power consumption in W	6 W
test function	Manual Auto test at start and every 5h
output contact	1 C/O standard
breaking capacity	250 V - AC 6 A 48 V - DC 1 A
communication port protocol	-
mounting mode	Flush-mounted Clip-on
mounting support	Panel DIN rail
mounting position	Horizontal Vertical
connections - terminals	Power supply removable screw terminal block 0,2…2,5 mm² Output relay removable screw terminal block 0,2…2,5 mm² Toroids inputs removable screw terminal block 0,2…1,5 mm²
material	Thermoplastic
overvoltage category	III
net weight	0,5 kg
cut-out dimensions	92 x 104 mm
height	110 mm
width	108 mm
depth	59 mm

Environment
IP degree of protection	Case IP20 Front face IP54
environmental characteristic	Exposure to damp heat not in service IEC 60068-2-30 Exposure to damp heat in service IEC 60068-2-56 Salt mist IEC 60068-2-52
operating altitude	<= 3000 m
pollution degree	2
relative humidity	5…92 %
type of installation	Indoor
standards	IEC 60364-4-41 IEC 61010-1 IEC 60364-5-51 IEC 61557-9
product certifications	DNV-GL CE EAC UL CULus
ambient air temperature for operation	-25…55 °C
ambient air temperature for storage	-40…85 °C
