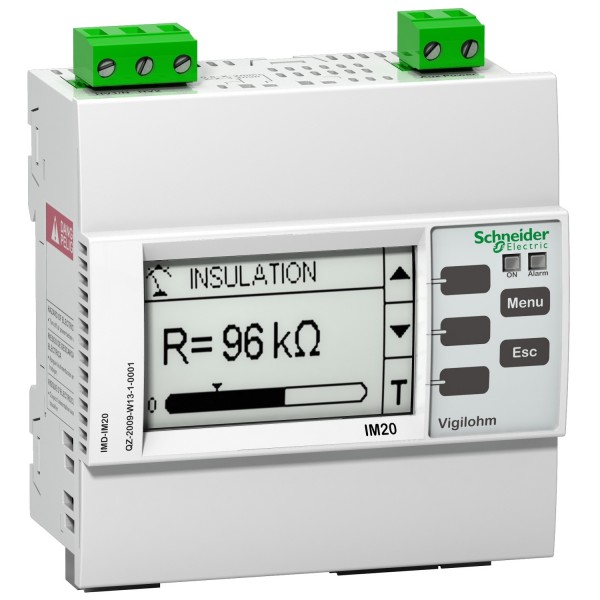

VIGILOHM IM20 - H 110-230 V CA

Details

Main
range	Vigilohm
device short name	IM20-H
product or component type	Insulation monitoring device
device application	Hospital
earthing system	IT
language	Russian Spanish French Chinese German Portuguese English Italian

Complementary
network rated voltage	0…230 V - AC 50/60 Hz phase to neutral) 0…100 V - DC
data recording	Alarm logs
type of measurement	Network insulation resistance 1 kOhm...10 MOhm History of alarms
local signalling	Green indicator light satisfactory insulation resistance Orange indicator light below fault threshold
threshold setting	Fault 50...500 kOhm
response time	<= 1 s
auxiliary supply voltage	125...250 V DC +/- 15 % 110...230 V AC 50/60 Hz +/- 15 %
power consumption in VA	12 VA
measurement voltage	25 V
measurement current	0…0,2 mA
internal impedance	110 kOhm - AC 50/60 Hz
test function	Manual
output contact	1 C/O standard or fail-safe
breaking capacity	250 V - AC 6 A 12...24 V - DC 6 A
input function	Injection inhibition 24 V DC 5 mA
communication port protocol	Modbus
communication port support	RS485
display type	Digital display
mounting mode	Clip-on Flush-mounted
mounting support	DIN rail Panel
connections - terminals	removable screw terminal block 0,2…2,5 mm²
material	Thermoplastic
net weight	0,25 kg
height	110 mm
width	96 mm
depth	59 mm

Environment
dielectric strength	4000 V - AC 5500 V - DC
IP degree of protection	Front face IP52
environmental characteristic	Exposure to damp heat not in service IEC 60068-2-30 Exposure to damp heat in service IEC 60068-2-56 Salt mist IEC 60068-2-52
pollution degree	2
type of installation	Indoor
standards	IEC 61010-1 IEC 61557-8 IEC 60364-7-710 IEC 61326-2-4
product certifications	DNV EAC BV CE
ambient air temperature for operation	-25…55 °C
ambient air temperature for storage	-40…70 °C

Offer Sustainability
ELi RoHS direktiiv	Vastavus ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon
WEEE	Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.

Contractual warranty
Garantii	18 months
