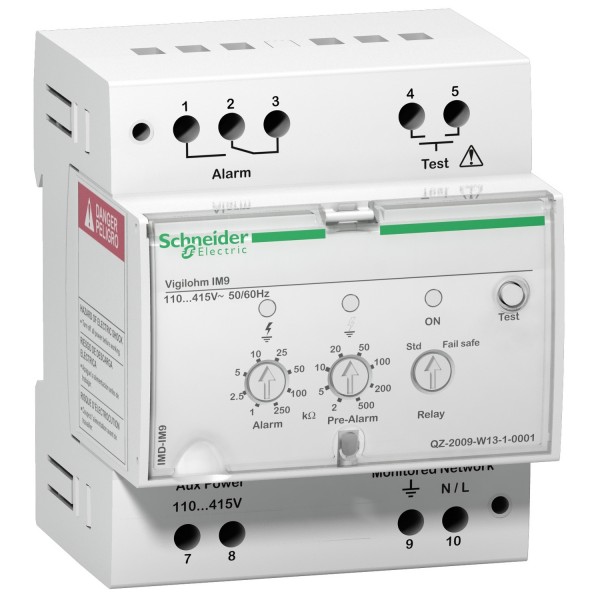

VIGILOHM IM9 - OL 110-415 V CA

Ülevaaded: 0

Tootekood: IMD-IM9-OL

Quick Overview

Saadavus: Tellimisel

510,56 € (ilma KM-ta)

Details

Main
range
Vigilohm
device short name
IM9-OL
product or component type
Insulation monitoring device
device application
Off-line motor
earthing system
TT
TN-S
IT
Complementary
network rated voltage
0…690 V - AC 45...440 Hz phase to phase)
0…690 V - DC between poles)
type of measurement
Stator insulation resistance
threshold setting
Pre-alarm 0.5...10 MOhm
Motor no start 0.25...2 MOhm
response time
<= 2 s
auxiliary supply voltage
110...415 V AC 45...440 Hz +/- 15 %
125...250 V DC +/- 15 %
internal impedance
500 kOhm - AC 45...440 Hz
1 MOhm - DC
test function
Manual
output contact
1 C/O standard
1 C/O fail-safe
breaking capacity
250 V - AC 6 A
12...24 V - DC 6 A
communication port protocol
-
mounting mode
Clip-on
Flush-mounted
mounting support
DIN rail
Panel
mounting position
Horizontal
Vertical
connections - terminals
tunnel type terminals 0,2…2,5 mm²
material
Thermoplastic
net weight
0,2 kg
height
90 mm
width
71 mm
depth
67,5 mm
Environment
IP degree of protection
Case IP20
Front face IP40
environmental characteristic
Exposure to damp heat not in service IEC 60068-2-30
Exposure to damp heat in service IEC 60068-2-56
Salt mist IEC 60068-2-52
type of installation
Indoor
standards
IEC 61557-8
IEC 60664-1
product certifications
EAC
DNV
CE
ambient air temperature for operation
-25…55 °C
ambient air temperature for storage
-40…70 °C
Offer Sustainability
Jätkusuutliku pakkumise olek
Green Premium toode
REACh-määrus
ELi RoHS direktiiv
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Keskkonnaalane avaldus
Ringlusprofiil
Contractual warranty
Garantii
18 months
