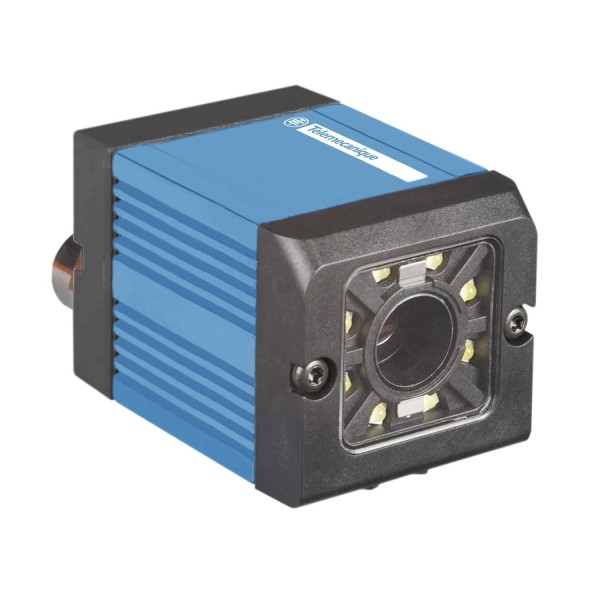

Vision sensor object standard focal lengh 12mm white leds

Details

Complementary
focal length	12 mm
setting-up	Focus adjustment by potentiometer
[Sn] nominal sensing distance	30…650 mm
field of view	8 x 6...250 x 170 mm
pixel resolution	736 x 480
technology type	CMOS
light source	White LED (4 groups of 2 leds)
tool type	Pattern matching 40 ms) Contour 60 ms) Contrast 4 ms) Brightness 4 ms) Greyscale 4 ms)
number of jobs	2
number of tools per job	32
acquisition speed	25 frames/s
number of inputs	2 input(s) PNP or NPN programmable
input function	External trigger Program selection
number of outputs	4 output(s) PNP or NPN programmable
discrete output function	1 NO or 1 NC programmable
output function governance	Ready Valid Logical functions Timer
input/output number	2 PNP or NPN programmable configurable
communication port protocol	Ethernet/IP
electrical connection	1 male connector, connector type: M12, 12 pins, circuit application: power supply and digital input/output (metal) 1 female connector, connector type: M12, 4 pins, circuit application: Ethernet network (metal)
enclosure material	ABS Aluminium
lens material	PMMA
[Us] rated supply voltage	24 V DC with reverse polarity protection 24 V DC with short-circuit protection
supply voltage limits	21…26 V DC
switching capacity in mA	50 mA by output (resistive or PLC input load) 100 mA ejector output (inductive load)
current consumption	<= 200 mA no-load
maximum delay first up	13 s
depth	65 mm
height	45 mm
width	45 mm
net weight	0.16 kg
provided equipment	Mounting clamp XUZASW001 1 CD (software and documentation)

Environment
product certifications	CE CULus
ambient air temperature for operation	0…50 °C
ambient air temperature for storage	-20…60 °C
relative humidity	80 % non-condensing
vibration resistance	7 gn amplitude = +/- 1.5 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
shock resistance	30 gn for 11 ms conforming to IEC 60068-2-27
IP degree of protection	IP65 conforming to IEC 60529 IP67 conforming to IEC 60529

Offer Sustainability
REACh Regulation	REACh Declaration
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes

Contractual warranty
Warranty	18 months
