Details
Characteristics
| range of product | Acti 9 | |
|---|---|---|

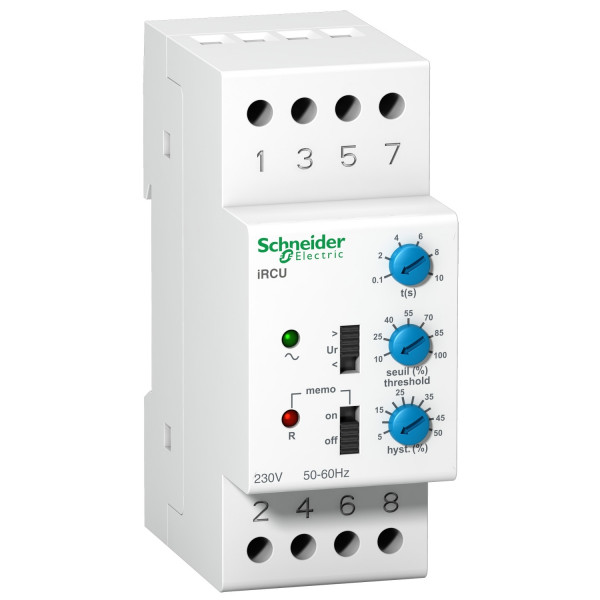

| product name | Acti 9 iRC | |
| product or component type | Control relay | |
| device short name | IRCU | |
| device application | Voltage control relay | |
| signal contacts composition | 1 C/O |
| [Ie] rated operational current | 8 A at 250 V AC 50/60 Hz (cos Phi = 1) | |
|---|---|---|
| local signalling | Reports when the preset threshold is reachedRed LED for faultGreen LED for power on | |
| type of setting | Selected by wiring: measurement rangeSwitch: overvoltageSwitch: undervoltage | |
| tripping threshold | 10...100 % | |
| analogue input range | 50...500 V AC10...100 V DC50...500 V DC10...100 V AC | |
| hysteresis | 5…50 % | |
| time delay range | 0.1...10 s | |
| accuracy error | +/- 10 % | |
| [Us] rated supply voltage | 230 V AC at 50/60 Hz | |
| power consumption in VA | 3 VA | |
| mounting mode | Fixed | |
| mounting support | 35 mm symmetrical DIN rail | |
| 9 mm pitches | 4 | |
| height | 88.1 mm | |
| width | 36 mm | |
| depth | 67 mm | |
| net weight | 0.215 kg | |
| colour | White | |
| connections - terminals | Tunnel type terminals6 cable(s) 1.5 mm² rigid |
| IP degree of protection | IP20 | |
|---|---|---|
| ambient air temperature for operation | -5…55 °C | |
| ambient air temperature for storage | -40…80 °C |
| REACh Regulation | ||
|---|---|---|
| REACh free of SVHC | Yes | |
| EU RoHS Directive | Compliant EU RoHS Declaration | |
| Toxic heavy metal free | Yes | |
| Mercury free | Yes | |
| RoHS exemption information | ||
| China RoHS Regulation | China RoHS declaration Pro-active China RoHS declaration (out of China RoHS legal scope) | |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Warranty | 18 months |
|---|
