Details
Characteristics
| range of product | Harmony XB5 | |
|---|---|---|

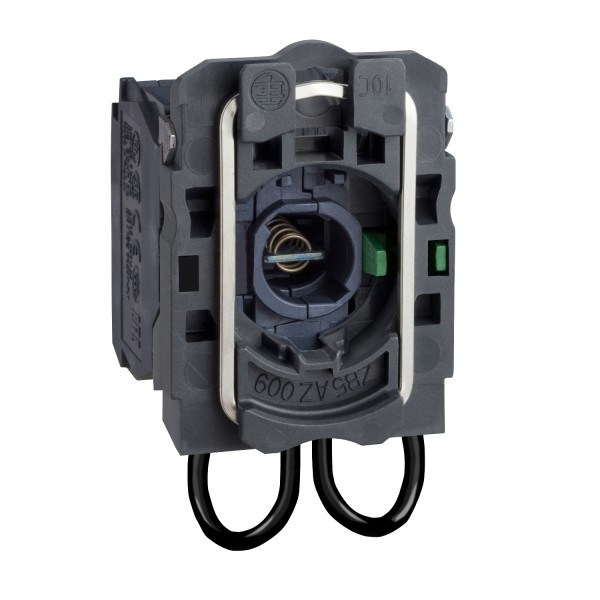

| product or component type | Complete pre-wired body/light block assembly | |
| device short name | ZB5 | |
| fixing collar material | Plastic | |
| sale per indivisible quantity | 1 | |
| connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN 60947-1Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN 60947-1 | |
| light source | Protected LED | |
| bulb base | Integral LED | |
| light source colour | White |
| CAD overall width | 30 mm | |
|---|---|---|
| CAD overall height | 42 mm | |
| CAD overall depth | 32 mm | |
| terminals description ISO n°1 | (X1-X2)PL | |
| net weight | 0.022 kg | |
| tightening torque | 0.8…1.2 N.m conforming to EN 60947-1 | |
| shape of screw head | Cross compatible with Philips no 1 screwdriverCross compatible with pozidriv No 1 screwdriverSlotted compatible with flat Ø 4 mm screwdriverSlotted compatible with flat Ø 5.5 mm screwdriver | |
| [Ui] rated insulation voltage | 600 V (pollution degree 3) conforming to EN 60947-1 | |
| [Uimp] rated impulse withstand voltage | 6 kV EN 60947-1 | |
| signalling type | Flashing | |
| [Us] rated supply voltage | 24 V AC/DC at 50/60 Hz | |
| supply voltage limits | 19.2…30 V DC21.6…26.4 V AC | |
| test function | 3-terminal test function | |
| current consumption | 18 mA | |
| service life | 100000 h at rated voltage and 25 °C | |
| surge withstand | 1 kV conforming to IEC 61000-4-5 |
| protective treatment | TH | |
|---|---|---|
| ambient air temperature for storage | -40…70 °C | |
| ambient air temperature for operation | -40…70 °C | |
| electrical shock protection class | Class II conforming to IEC 60536 | |
| standards | EN/IEC 60947-5-4CSA C22.2 No 14JIS C8201-5-1EN/IEC 60947-1EN/IEC 60947-5-1UL 508JIS C8201-1 | |
| product certifications | RINAUL listedLROS (Lloyds register of shipping)CSAGLBVDNV | |
| vibration resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 | |
| shock resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-2750 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 | |
| resistance to fast transients | 2 kV conforming to IEC 61000-4-4 | |
| resistance to electromagnetic fields | 10 V/m conforming to IEC 61000-4-3 | |
| resistance to electrostatic discharge | 6 kV on contact (on metal parts) conforming to IEC 61000-2-68 kV in free air (in insulating parts) conforming to IEC 61000-2-6 | |
| electromagnetic emission | Class B conforming to IEC 55011 |
| Sustainable offer status | Green Premium product | |
|---|---|---|
| REACh Regulation | ||
| REACh free of SVHC | Yes | |
| EU RoHS Directive | Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration | |
| Mercury free | Yes | |
| RoHS exemption information | ||
| China RoHS Regulation | ||
| Environmental Disclosure | ||
| Circularity Profile | ||
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Warranty | 18 months |
|---|
