Details
Characteristics
| range of product | Harmony XB5 | |
|---|---|---|

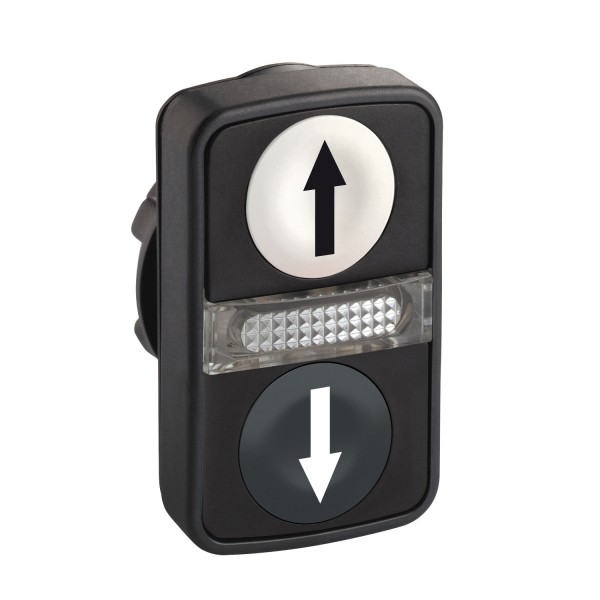

| product or component type | Head for illuminated double-headed push-button | |
| product compatibility | Integral LED | |
| device short name | ZB5 | |
| bezel material | Dark grey plastic | |
| head type | Standard | |
| mounting diameter | 22 mm | |
| sale per indivisible quantity | 1 | |
| shape of signaling unit head | Rectangular | |
| type of operator | spring return | |
| operator profile | 2 flush push-buttons - 1 central pilot light | |
| operators description | White ''up arrow'' - black ''down arrow'' |
| CAD overall width | 30 mm | |
|---|---|---|
| CAD overall height | 50 mm | |
| CAD overall depth | 30 mm | |
| net weight | 0.023 kg | |
| colour of marking | Black marking when white caps | |
| operator profile | White flush, up arrow (black)Black flush, down arrow (white) | |
| mechanical durability | 1000000 cycles | |
| station name | XALD 1 cut-out | |
| device presentation | Basic sub-assemblies |
| ambient air temperature for storage | -40…70 °C | |
|---|---|---|
| ambient air temperature for operation | -25…70 °C | |
| electrical shock protection class | Class II conforming to IEC 60536 | |
| IP degree of protection | IP66IP67IP69IP69K | |
| NEMA degree of protection | NEMA 13NEMA 4X | |
| resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m | |
| IK degree of protection | IK05 conforming to IEC 50102 | |
| standards | EN/IEC 60947-1UL 508JIS C8201-5-1EN/IEC 60947-5-4CSA C22.2 No 14EN/IEC 60947-5-1JIS C8201-1 | |
| product certifications | BVCSADNVGLRINAUL listedLROS (Lloyds register of shipping) | |
| vibration resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 | |
| shock resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-2750 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Sustainable offer status | Green Premium product | |
|---|---|---|
| REACh Regulation | ||
| REACh free of SVHC | Yes | |
| EU RoHS Directive | Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration | |
| Toxic heavy metal free | Yes | |
| Mercury free | Yes | |
| RoHS exemption information | ||
| China RoHS Regulation | ||
| Environmental Disclosure | ||
| Circularity Profile |
| Warranty | 18 months |
|---|
