Details
Müüdavad tooted

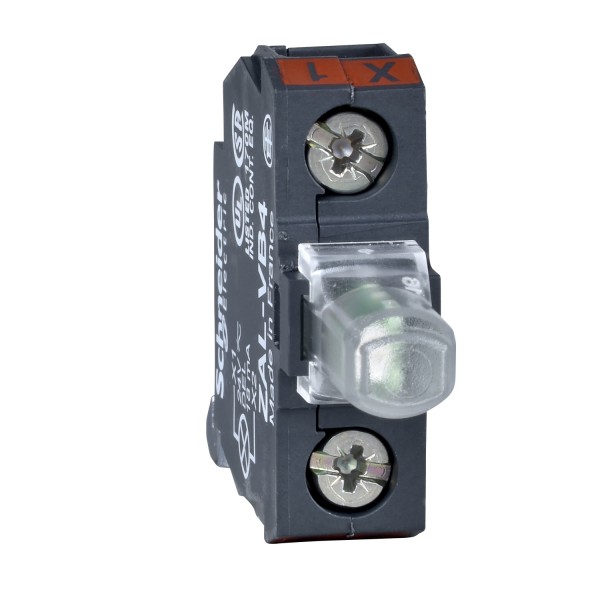

| range of product | Harmony XAL | |
|---|---|---|
| product or component type | Light block | |
| device short name | ZALV | |
| product destination | For XB5 Ø 22 mm control and signalling units | |
| mounting of block | Rear mounting | |
| sale per indivisible quantity | 5 | |
| light source colour | White | |
| [Us] rated supply voltage | 24 V AC/DC |
| assembly style | For customer assembly | |
|---|---|---|
| net weight | 0,015 kg | |
| connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1Screw clamp terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1 | |
| tightening torque | 0,8…1,2 N.m EN 60947-1 | |
| shape of screw head | Cross Philips no 1Cross pozidriv No 1Slotted flat Ø 4 mmSlotted flat Ø 5.5 mm | |
| [Ui] rated insulation voltage | 250 V 3)EN/IEC 60947-1 | |
| [Uimp] rated impulse withstand voltage | 4 kV EN/IEC 60947-1 | |
| signalling type | Steady | |
| light source | Integrated and protected LED | |
| supply voltage limits | 19,2…30 V DC21,6…26,4 V AC | |
| current consumption | 18 mA | |
| service life | 100000 h at rated voltage and 25 °C | |
| surge withstand | 1 kV IEC 61000-5-1 | |
| light block supply | Direct | |
| bulb base | Integral LED | |
| electrical composition code | MR1PR1 |
| protective treatment | TH | |
|---|---|---|
| ambient air temperature for storage | -40…70 °C | |
| ambient air temperature for operation | -40…70 °C | |
| IP degree of protection | IP20 IEC 60529 | |
| standards | EN/IEC 60947-5-5EN/IEC 60947-5-4EN/IEC 60947-1EN/IEC 60947-5-1CSA C22.2 No 14JIS C8201-5-1UL 508JIS C8201-1 | |
| product certifications | UL listedCSA | |
| vibration resistance | 5 gn 12…500 Hz)IEC 60068-2-6 | |
| shock resistance | 30 gn 18 ms) half sine wave acceleration EN/IEC 60068-2-2750 gn 11 ms) half sine wave acceleration EN/IEC 60068-2-27 | |
| resistance to fast transients | 2 kV IEC 61000-4-4 | |
| resistance to electromagnetic fields | 10 V/m IEC 61000-4-3 | |
| resistance to electrostatic discharge | 6 kV on contact (on metal parts) IEC 61000-4-28 kV in free air (in insulating parts) IEC 61000-4-2 | |
| electromagnetic emission | Class B IEC 55011 |
| Jätkusuutliku pakkumise olek | Green Premium toode | |
|---|---|---|
| REACh-määrus | ||
| Ilma SVHC REACh-ta | Jah | |
| ELi RoHS direktiiv | Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon | |
| Elavhõbedavaba | Jah | |
| RoHS eranditeave | ||
| Hiina EoHS regulatsioon | ||
| Keskkonnaalane avaldus | ||
| WEEE | Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka. |
| Garantii | 18 months |
|---|
