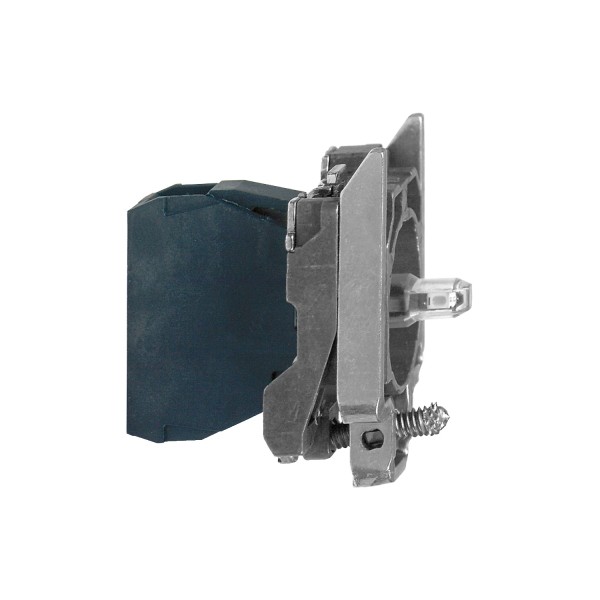

white light block with body/fixing collar integral LED 24...120V

Product was successfully added to your shopping cart.

white light block with body/fixing collar integral LED 24...120V

Tootekood: ZB4BVBG1

Quick Overview

Saadavus: Tellimisel

12,53 € (ilma KM-ta)

Qty:

Details

Main
range of product	Harmony XB4
product or component type	Complete body/light block assembly
device short name	ZB4
fixing collar material	Zamak
sale per indivisible quantity	1
connections - terminals	Screw clamp terminals, <= 2 x 1.5 mm² with cable end Screw clamp terminals, >= 1 x 0.22 mm² without cable end
light source	Protected LED
bulb base	Integral LED
light source colour	White
[Us] rated supply voltage	24...120 V AC/DC at 50/60 Hz

Complementary
CAD overall width	30 mm
CAD overall height	47 mm
CAD overall depth	37 mm
terminals description ISO n°1	(X1-X2)PL
net weight	0.054 kg
tightening torque	0.8…1.2 N.m conforming to EN 60947-1
shape of screw head	Cross compatible with Philips no 1 screwdriver Cross compatible with pozidriv No 1 screwdriver Slotted compatible with flat Ø 4 mm screwdriver Slotted compatible with flat Ø 5.5 mm screwdriver
[Ui] rated insulation voltage	600 V (pollution degree 3) conforming to EN 60947-1
[Uimp] rated impulse withstand voltage	EN 60947-1 6 kV
signalling type	Steady
supply voltage limits	19.2…132 V DC 21.6…132 V AC
service life	100000 h at rated voltage and 25 °C
surge withstand	1 kV conforming to IEC 61000-4-5
device presentation	Basic sub-assemblies

Environment
protective treatment	TH
ambient air temperature for storage	-40…70 °C
ambient air temperature for operation	-40…70 °C
electrical shock protection class	Class I conforming to IEC 60536
standards	EN/IEC 60947-1 UL 508 EN/IEC 60947-5-1 CSA C22.2 No 14 EN/IEC 60947-5-5 JIS C8201-5-1 EN/IEC 60947-5-4 JIS C8201-1
product certifications	DNV UL listed BV GL LROS (Lloyds register of shipping) CSA RINA
vibration resistance	5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
shock resistance	30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
resistance to fast transients	2 kV conforming to IEC 61000-4-4
resistance to electromagnetic fields	10 V/m conforming to IEC 61000-4-3
resistance to electrostatic discharge	6 kV on contact (on metal parts) conforming to IEC 61000-2-6 8 kV in free air (in insulating parts) conforming to IEC 61000-2-6
electromagnetic emission	Class B conforming to IEC 55011

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
REACh free of SVHC	Yes
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration
Environmental Disclosure	Product Environmental Profile
Circularity Profile	End of Life Information
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Contractual warranty
Warranty	18 months
