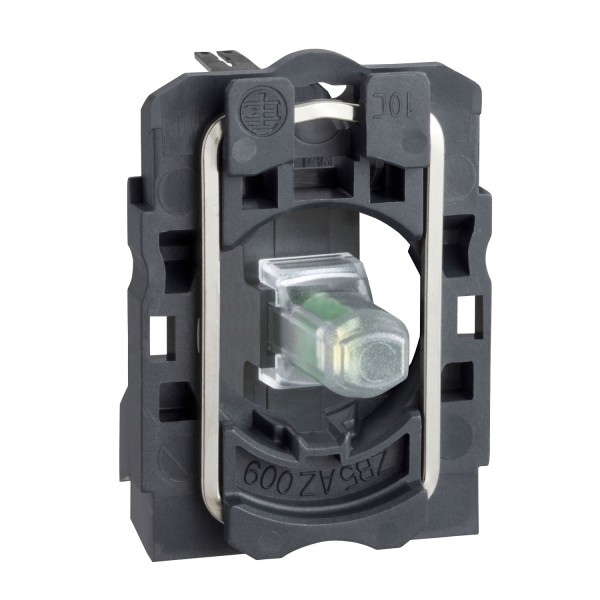

white light block with body/fixing collar integral LED 24V

Ülevaaded: 0

Tootekood: ZB5AVB13

Quick Overview

Saadavus: Ei saa enam tellida

10,75 € (ilma KM-ta)

Details

Main
range of product
Harmony XB5
product or component type
Complete body/light block assembly
device short name
ZB5
fixing collar material
Plastic
sale per indivisible quantity
1
connections - terminals
Faston connector 1 x 6.35 mm
Faston connector 2 x 2.8 mm
light source
Protected LED
bulb base
Integral LED
light source colour
White
Complementary
CAD overall width
30 mm
CAD overall height
49 mm
CAD overall depth
32 mm
terminals description ISO n°1
(X1-X2)PL
[Ui] rated insulation voltage
250 V 3)EN 60947-1
[Uimp] rated impulse withstand voltage
4 kV EN 60947-1
signalling type
Steady
[Us] rated supply voltage
24 V AC/DC 50/60 Hz
supply voltage limits
19,2…30 V DC
21,6…26,4 V AC
current consumption
18 mA
service life
100000 h at rated voltage and 25 °C
surge withstand
1 kV IEC 61000-4-5
Environment
protective treatment
TH
ambient air temperature for storage
-40…70 °C
ambient air temperature for operation
-40…70 °C
electrical shock protection class
Class II IEC 60536
standards
EN/IEC 60947-5-4
EN/IEC 60947-1
CSA C22.2 No 14
EN/IEC 60947-5-1
UL 508
JIS C8201-5-1
JIS C8201-1
product certifications
UL listed
CSA
vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
resistance to fast transients
2 kV IEC 61000-4-4
resistance to electromagnetic fields
10 V/m IEC 61000-4-3
resistance to electrostatic discharge
6 kV on contact (on metal parts) IEC 61000-2-6
8 kV in free air (in insulating parts) IEC 61000-2-6
electromagnetic emission
Class B IEC 55011
Contractual warranty
Garantii
18 months
