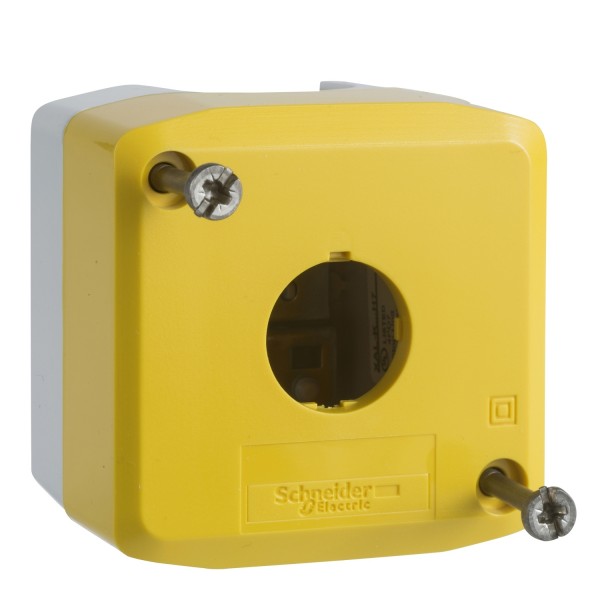

yellow empty enclosure lid with light grey base - 1 cut-out - UL/CSA certified

Product was successfully added to your shopping cart.

yellow empty enclosure lid with light grey base - 1 cut-out - UL/CSA certified

Tootekood: XALK01H7

Quick Overview

Saadavus: Tellimisel

11,14 € (ilma KM-ta)

Qty:

Details

Main
range of product	Harmony XALK
product or component type	Empty control station
device short name	XALK
product destination	For XB5 Ø 22 mm control and signalling units
control station application	Emergency switching off function Emergency stop function
number of cut-out	1 cut-out
colour of base of enclosure	Light grey (RAL 7035)
colour of cover	Yellow (RAL 1021)
material	Polycarbonate
cable entry	1 knock-out for cable entry, clamping capacity: 14 mm 2 knock-outs for Pg 13 cable gland and ISO M20, clamping capacity: 12 mm
IP degree of protection	IP66 conforming to IEC 60529 IP67 IP69 IP69K

Complementary
assembly style	For customer assembly
number of horizontal rows	1
number of vertical rows	1
resistance to high pressure washer	7000000 Pa at 55 °C, distance : 0.1 m
mounting of block	Front mounting Rear mounting
electrical composition code	SF1 SR1 MF1 MR1
main group	1 cut-out
group of product	UL-CSA yellow

Environment
protective treatment	TH
ambient air temperature for storage	-40…70 °C
ambient air temperature for operation	-40…70 °C
overvoltage category	Class II conforming to IEC 60536
NEMA degree of protection	NEMA 13 NEMA 4X
IK degree of protection	IK03 conforming to EN 50102
standards	EN/IEC 60947-5-4 CSA C22.2 No 14 JIS C8201-5-1 EN/IEC 60947-5-1 EN/IEC 60947-1 EN/IEC 60947-5-5 UL 508 JIS C8201-1
product certifications	UL CSA

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
REACh free of SVHC	Yes
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Toxic heavy metal free	Yes
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration
Environmental Disclosure	Product Environmental Profile
Circularity Profile	End of Life Information

Contractual warranty
Warranty	18 months
