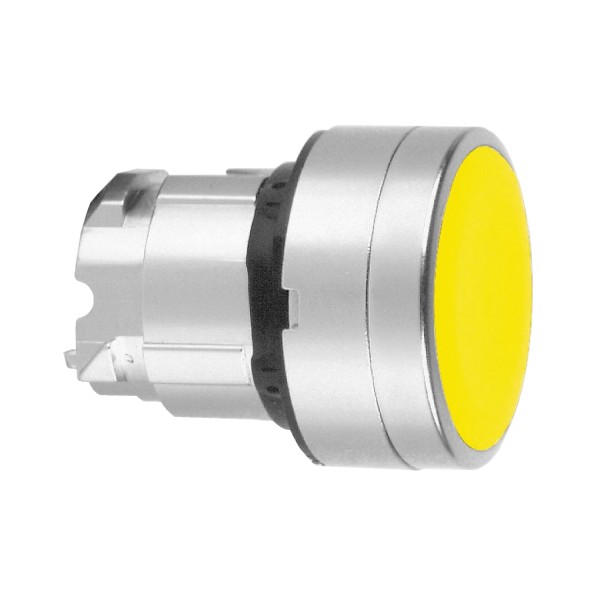

yellow flush pushbutton head Ø22 spring return unmarked

Product was successfully added to your shopping cart.

yellow flush pushbutton head Ø22 spring return unmarked

Tootekood: ZB4BP583

Quick Overview

Saadavus: Ei saa enam tellida

16,83 € (ilma KM-ta)

Details

Main
range of product	Harmony XB4
product or component type	Head for non-illuminated push-button
device short name	ZB4
product compatibility	legend holder
bezel material	Chromium plated metal
mounting diameter	22 mm
sale per indivisible quantity	1
head type	Standard
shape of signaling unit head	Round
type of operator	spring return
operator profile	Yellow flush, unmarked
operator additional information	Clear membrane for insertion of protected legend within head

Complementary
CAD overall width	30 mm
CAD overall height	30 mm
CAD overall depth	32 mm
mechanical durability	10000000 cycles
electrical composition code	C3 for <6 contacts using single blocks in front mounting C4 for <6 contacts using single and double blocks in front mounting C14 for <2 contacts using single blocks in front mounting
device presentation	Basic element

Environment
protective treatment	TH
ambient air temperature for storage	-40…70 °C
ambient air temperature for operation	-40…70 °C
overvoltage category	Class I conforming to IEC 60536
IP degree of protection	IP66 conforming to IEC 60529 IP67 IP69 IP69K
NEMA degree of protection	NEMA 13 NEMA 4X
IK degree of protection	IK06 conforming to IEC 50102
standards	JIS C8201-5-1 CSA C22.2 No 14 EN/IEC 60947-5-1 EN/IEC 60947-1 EN/IEC 60947-5-5 EN/IEC 60947-5-4 UL 508 JIS C8201-1
product certifications	GL DNV UL listed LROS (Lloyds register of shipping) CSA RINA BV
vibration resistance	5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
shock resistance	30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
REACh free of SVHC	Yes
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Toxic heavy metal free	Yes
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration
Environmental Disclosure	Product Environmental Profile
Circularity Profile	End of Life Information

Contractual warranty
Warranty	18 months
