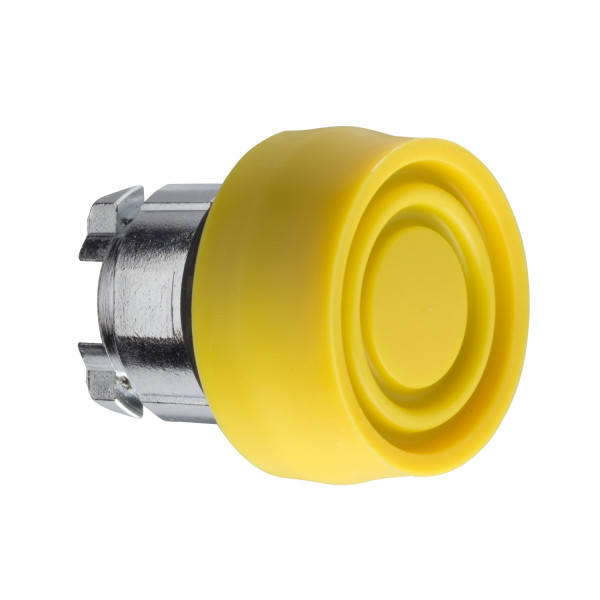

yellow flush pushbutton head Ø22 spring return unmarked

Ülevaaded: 0

Tootekood: ZB4BP5S

Quick Overview

Saadavus: Tellimisel

15,48 € (ilma KM-ta)

Details

Main
range of product
Harmony XB4
product or component type
Head for non-illuminated push-button
device short name
ZB4
product compatibility
legend holder
bezel material
Chromium plated metal
mounting diameter
22 mm
sale per indivisible quantity
1
head type
Standard
shape of signaling unit head
Round
type of operator
spring return
operator profile
Yellow flush, unmarked
operator additional information
Coloured boot
Complementary
CAD overall width
30 mm
CAD overall height
30 mm
CAD overall depth
33 mm
mechanical durability
10000000 cycles
electrical composition code
C1 for <9 contacts using single blocks in front mounting
C2 for <9 contacts using single and double blocks in front mounting
C11 for <3 contacts using single blocks in front mounting
C15 for <1 contacts using single blocks in front mounting
device presentation
Basic element
Environment
protective treatment
TH
ambient air temperature for storage
-40…70 °C
ambient air temperature for operation
-40…70 °C
overvoltage category
Class I conforming to IEC 60536
IP degree of protection
IP66 conforming to IEC 60529
IP67
IP69
IP69K
NEMA degree of protection
NEMA 13
NEMA 4X
IK degree of protection
IK06 conforming to IEC 50102
standards
EN/IEC 60947-5-5
CSA C22.2 No 14
UL 508
EN/IEC 60947-5-1
EN/IEC 60947-1
EN/IEC 60947-5-4
JIS C8201-5-1
JIS C8201-1
product certifications
DNV
BV
GL
LROS (Lloyds register of shipping)
RINA
UL listed
CSA
vibration resistance
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
shock resistance
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Offer Sustainability
Sustainable offer status
Green Premium product
REACh Regulation
REACh free of SVHC
Yes
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Toxic heavy metal free
Yes
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
Environmental Disclosure
Circularity Profile
Contractual warranty
Warranty
18 months
