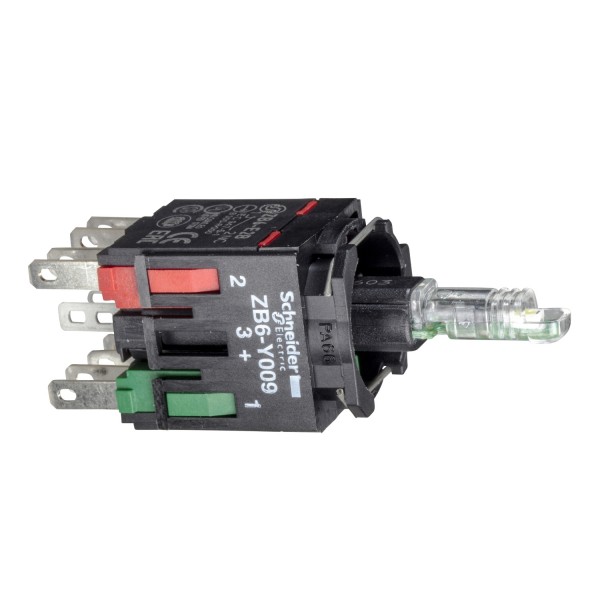

yellow light block with body/fixing collar with integral LED 12...24V 1NO

Details

Main
range of product	Harmony XB6
product or component type	Complete body for illuminated push-button
device short name	ZB6
fixing collar material	Plastic
sale per indivisible quantity	1
contacts type and composition	1 NO
contact operation	Slow-break
connections - terminals	Faston connector 2.8 x 0.5 mm
light source	LED
bulb base	Integral LED
light source colour	Yellow
[Us] rated supply voltage	12...24 V AC/DC

Complementary
CAD overall width	24 mm
CAD overall height	18 mm
CAD overall depth	51 mm
terminals description ISO n°1	(13-14)NO
net weight	0,006 kg
contacts usage	Standard
positive opening	With EN/IEC 60947-5-1 appendix K
operating travel	2 mm NO changing electrical state) 4,3 mm total travel)
operating force	1,6 N NO changing electrical state
contacts material	Silver alloy (Ag/Ni)
short-circuit protection	6 A cartridge fuse gG EN/IEC 60947-5-1
[Ui] rated insulation voltage	250 V 3)EN/IEC 60947-1
[Uimp] rated impulse withstand voltage	4 kV EN/IEC 60947-1
[Ie] rated operational current	3 A 120 V, AC-15, B300 1,5 A 240 V, AC-15, B300 0,1 A 250 V, DC-13, R300 0,22 A 125 V, DC-13, R300
electrical durability	1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0,5 EN/IEC 60947-5-1 appendix C 1000000 cycles, DC-15, 2 A 230 V 3600 cyc/h 0,5 EN/IEC 60947-5-1 appendix C
electrical reliability	Λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % EN/IEC 60947-5-4
signalling type	Steady
supply voltage limits	6…30 V AC/DC
current consumption	15 mA
surge withstand	1 kV direct contact IEC 61000-4-5 2 kV in free air IEC 61000-4-5

Environment
protective treatment	TC
ambient air temperature for storage	-40…70 °C
ambient air temperature for operation	-25…70 °C
electrical shock protection class	Class II IEC 61140
standards	UL 508 JIS C 4520 EN/IEC 60947-5-1 EN/IEC 60947-5-5 JIS C 852 CSA C22.2 No 14 EN/IEC 60947-1
product certifications	CSA GOST CCC UL
vibration resistance	+/- 3 mm 2…500 Hz)IEC 60068-2-6 5 gn 2…500 Hz)IEC 60068-2-6
shock resistance	30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
resistance to fast transients	2 kV IEC 61000-4-4
resistance to electromagnetic fields	10 V/m IEC 61000-4-3
resistance to electrostatic discharge	6 kV on contact (on metal parts) IEC 61000-2-6 8 kV in free air (in insulating parts) IEC 61000-2-6
electromagnetic emission	Class B IEC 55011

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon
Keskkonnaalane avaldus	Toote keskkonnaprofiil
Ringlusprofiil	Kasutuselt kõrvaldamise teave
WEEE	Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.

Contractual warranty
Garantii	18 months
