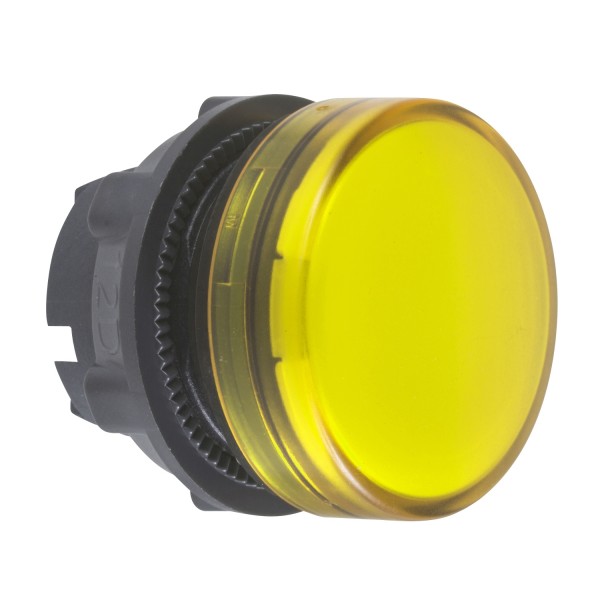

yellow pilot light head ø22 plain lens for integral led

Ülevaaded: 0

Tootekood: ZB5AV083

Quick Overview

Saadavus: Kesklaos, tarneaeg 2 – 4 tööpäeva

2,42 € (ilma KM-ta)

Details

Main
range of product
Harmony XB5
product or component type
Head for pilot light
product compatibility
Integral LED
device short name
ZB5
bezel material
Dark grey plastic
mounting diameter
22 mm
sale per indivisible quantity
1
shape of signaling unit head
Round
cap/operator or lens colour
Yellow
operator additional information
With plain lens
Complementary
CAD overall width
29 mm
CAD overall height
29 mm
CAD overall depth
31 mm
net weight
0.017 kg
station name
XALD 1...5 cut-outs
XALK 2...5 cut-outs
electrical composition code
P1 in front mounting with integral LED
P2 in front mounting with integral LED and transformer
PF1 in front mounting with integral LED
PR1 in rear mounting with integral LED
device presentation
Basic element
Environment
protective treatment
TH
ambient air temperature for storage
-40…70 °C
ambient air temperature for operation
-40…70 °C
overvoltage category
Class II conforming to IEC 60536
IP degree of protection
IP66 conforming to IEC 60529
IP67
NEMA degree of protection
NEMA 13
NEMA 4X
resistance to high pressure washer
7000000 Pa at 55 °C, distance : 0.1 m
IK degree of protection
IK05 conforming to IEC 50102
standards
EN/IEC 60947-5-5
EN/IEC 60947-5-1
CSA C22.2 No 14
EN/IEC 60947-1
EN/IEC 60947-5-4
JIS C8201-5-1
UL 508
JIS C8201-1
vibration resistance
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
shock resistance
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Offer Sustainability
Sustainable offer status
Green Premium product
REACh Regulation
REACh free of SVHC
Yes
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Toxic heavy metal free
Yes
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
Environmental Disclosure
Circularity Profile
