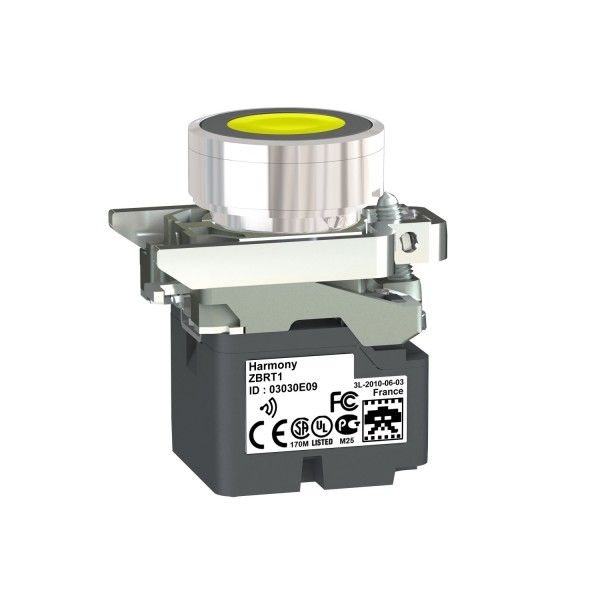

ZB4R transmitter complete, yellow cap

Details

Main
range of product	Harmony XB5
product or component type	Wireless and batteryless transmitter
device short name	XB5R
bezel material	Chromium plated metal
fixing collar material	Zamak
mounting diameter	22 mm
transmission frequency	2405 MHz
emission class	5M00G7W
antenna type	Omnidirectional

Complementary
shape of signaling unit head	Round
type of operator	spring return push-button with transmitter
operator profile	Yellow flush
max power consumption in W	1 mW
number of channels	1
modulation technique	O-QPSK
bandwidth	5 MHz
antenna gain	0 dBi
embedding depth	42 mm
CAD overall height	41,5 mm
CAD overall width	30 mm
CAD overall depth	43 mm
net weight	0,045 kg
operating travel	4,3 mm total travel)
operating force	25 N C/O changing electrical state
mechanical robustness	Free fall resistance 1000 mm EN/IEC 60068-2-32
standards	EN/IEC 60947-1 CSA C22.2 No 14 UL 508 EN/IEC 60947-5-1
radio agreement	ANATEL ARIB T66 FCC ICASA RSS SRRC
communication port protocol	Zigbee green power 2,4 GHz IEEE 802.15.4
maximum sensing distance	100 m in free field 25 m transmitter in a plastic box type XAL D and receiver in a metal enclosure 300 m transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna
acquisition time	2 ms
response time	< 2 ms
emission power	3 mW
fixing mode	Fixing screw beneath head 0,8…1,2 N.m
electrical composition code	PW1

Environment
protective treatment	TH
ambient air temperature for storage	-40…70 °C
ambient air temperature for operation	-25…55 °C
relative humidity	95 % 70 °C without condensation
IP degree of protection	IP65 IEC 60529 front face) IP30 IEC 60529 back face) IP65 UL Type 12 front face)
IK degree of protection	IK03 IEC 50102
mechanical durability	1000000 cycles
shock resistance	25 gn 6 ms) 6000 shocks IEC 60068-2-27 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
vibration resistance	5 gn 11…500 Hz)IEC 60068-2-6 +/- 10 mm 2…11 Hz)IEC 60068-2-6
electromagnetic compatibility	Electrostatic discharge immunity test 8 kV in free air (in insulating parts)) Electrostatic discharge immunity test 6 kV on contact (on metal parts)) Susceptibility to electromagnetic fields 10 V/m 80...2000 MHz) Susceptibility to electromagnetic fields 3 V/m 80...2700 MHz, distance = 20 m) Immunity for industrial environments Radiated emission
product certifications	UL CSA CCC C-Tick GOST BT 2006/95/EC
directives	1999/5/EC - R&TTE directive 2004/108/EC - electromagnetic compatibility

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon
Keskkonnaalane avaldus	Toote keskkonnaprofiil
Ringlusprofiil	Kasutuselt kõrvaldamise teave
WEEE	Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.

Contractual warranty
Garantii	18 months
